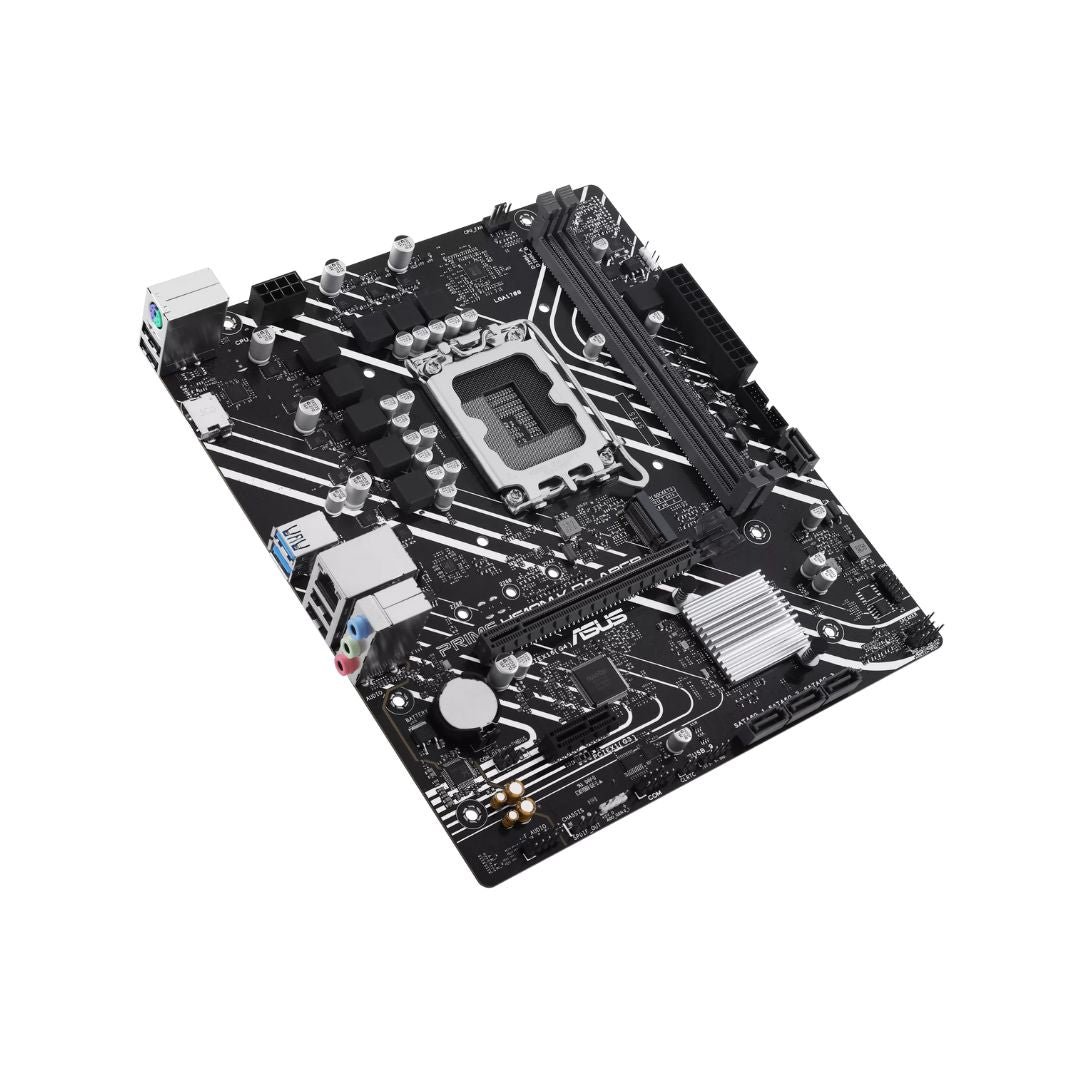

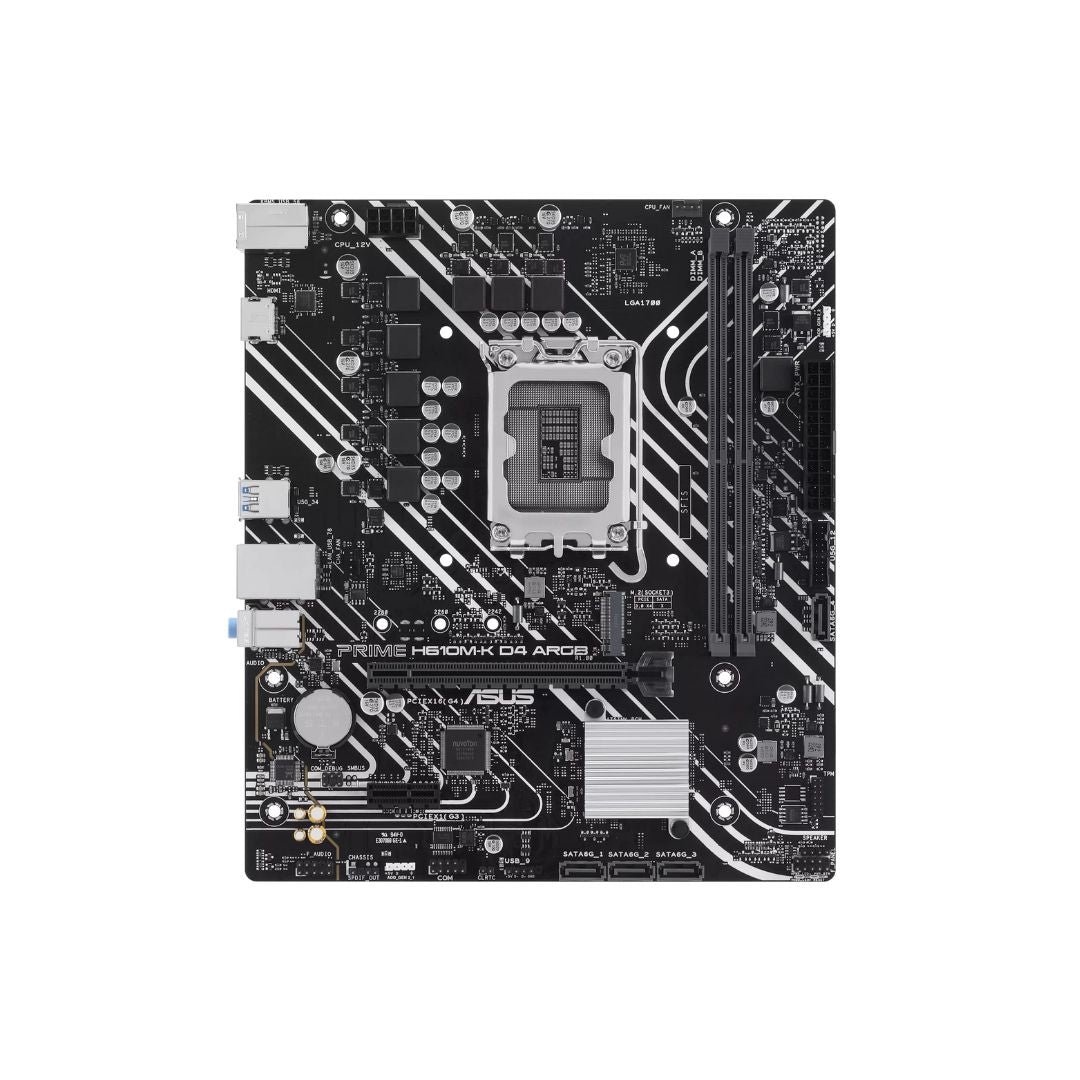

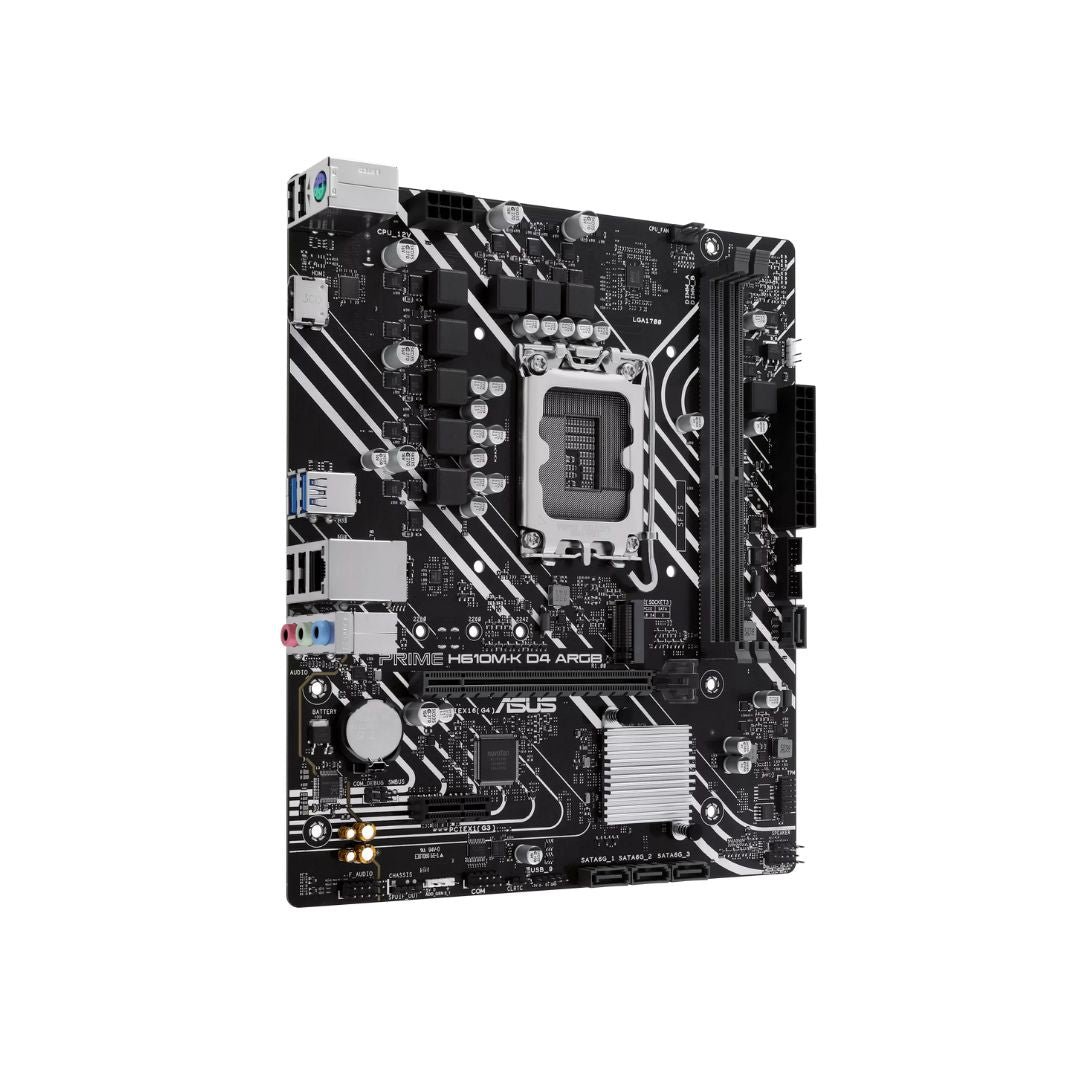

لوحة أم ASUS PRIME H610M-K D4 ARGB Motherboard

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® المعالجs)
• Chipset: Intel® H610
• عامل الشكل: Micro-ATX (9.2 in x 8.0 in / 23.4 cm x 20.3 cm)
• الذاكرة Support: DDR4 (Supports up to DDR4-3200/3000/2933/2800/2666/2400/2133 MHz, لاn-ECC, Un-buffered, Dual-Channel, Intel® XMP)
• الذاكرة Slots & Max Capacity: 2x DIMM slots, Up to 64 GB
• PCIe Expansion Slots:
◦ 1x PCIe 4.0 x16 slot (SafeSlot Core, supports x16 mode from CPU)
◦ 1x PCIe 3.0 x1 slot (from H610 Chipset)
• M.2 التخزين Slots:
◦ 1x M.2 slot (Key M, type 2242/2260/2280 from H610 Chipset) — supports PCIe 3.0 x4 mode
• SATA المنافذ: 4x SATA 6Gb/s

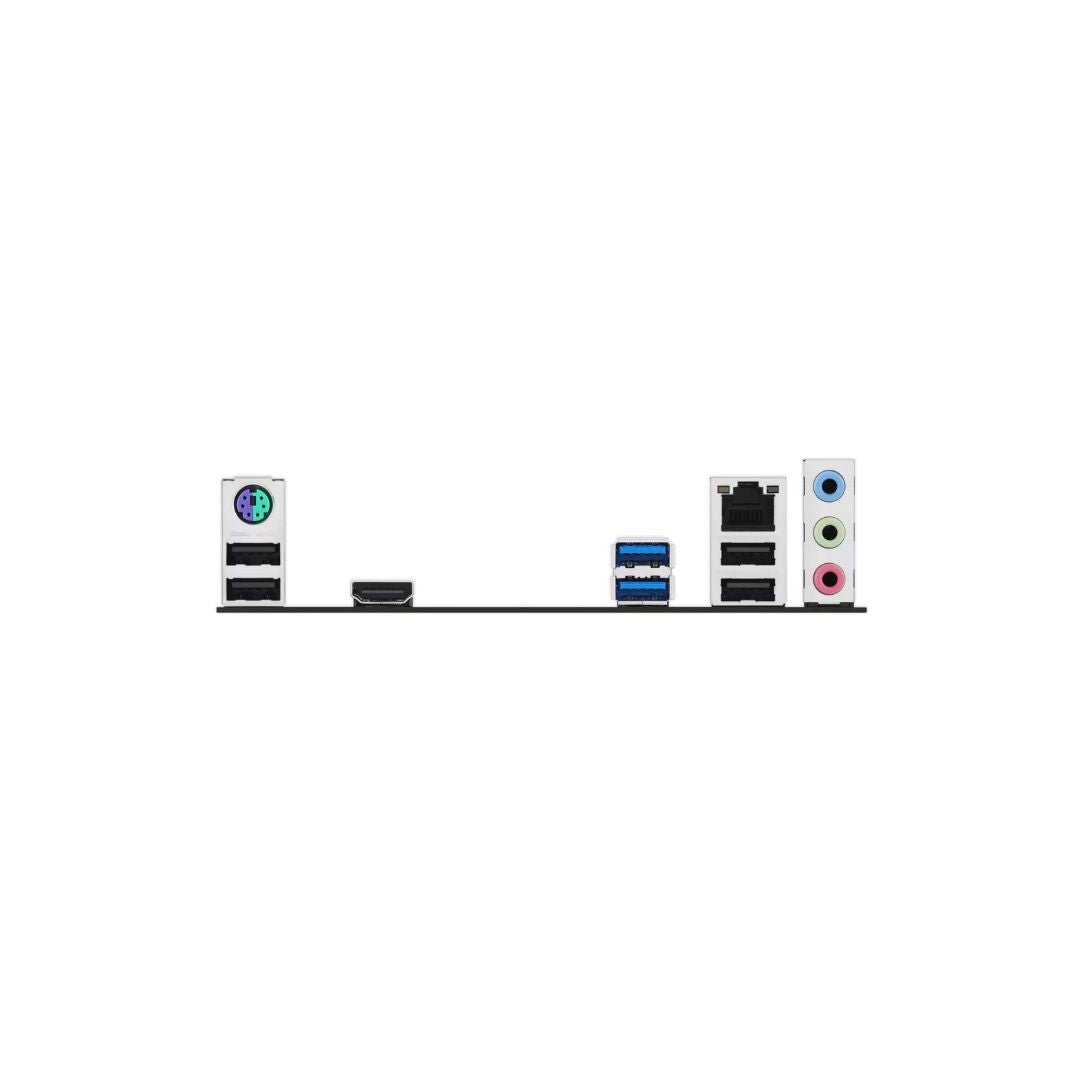

• Rear I/O USB المنافذ:
◦ 2x USB 5Gbps النوع-A (USB 3.2 Gen 1)
◦ 4x USB 2.0 النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 5Gbps header (supports 2 additional USB 5Gbps ports)
◦ 1x USB 2.0 header (supports 1 additional USB 2.0 port)
• Networking & الاتصال: Realtek 1Gb Ethernet (لا onboard Wi-Fi / Bluetooth)
• الشاشة Outputs:
◦ 1x HDMI 2.1 (supports up to 4K @ 60Hz)
• Audio Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC (with 3x Audio jacks)
• Power Delivery / Power Connectors: Digi+ VRM, 1x 24-pin Main Power, 1x 8-pin +12V Power
• RGB & Fan Headers:
◦ 1x 4-pin CPU Fan header
◦ 1x 4-pin Chassis Fan header
◦ 2x Addressable Gen 2 headers (ARGB 5V) (لاte: لا 12V RGB header)
• Special Features: Q-LED Core, ASUS 5X Protection III, PS/2 combo port
