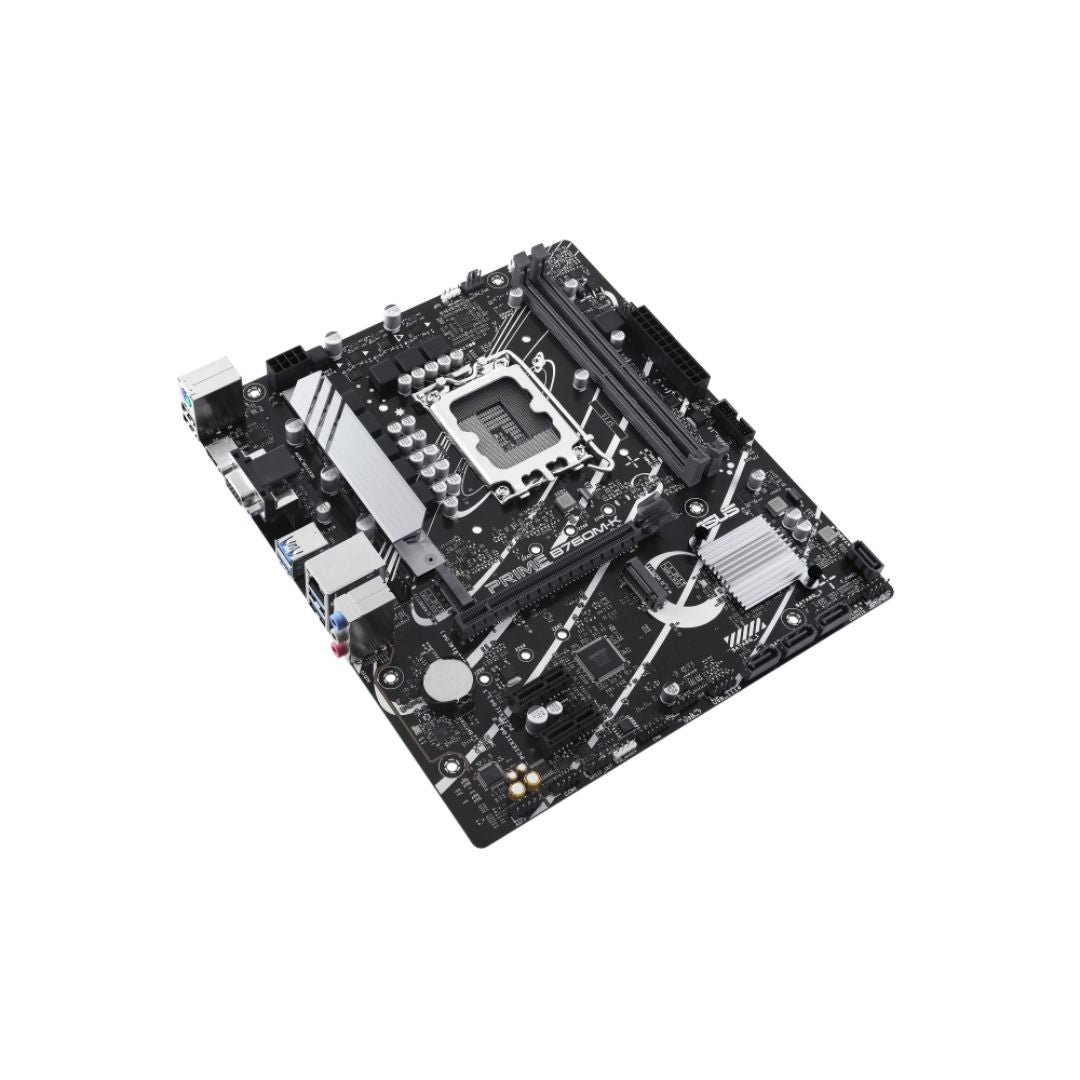

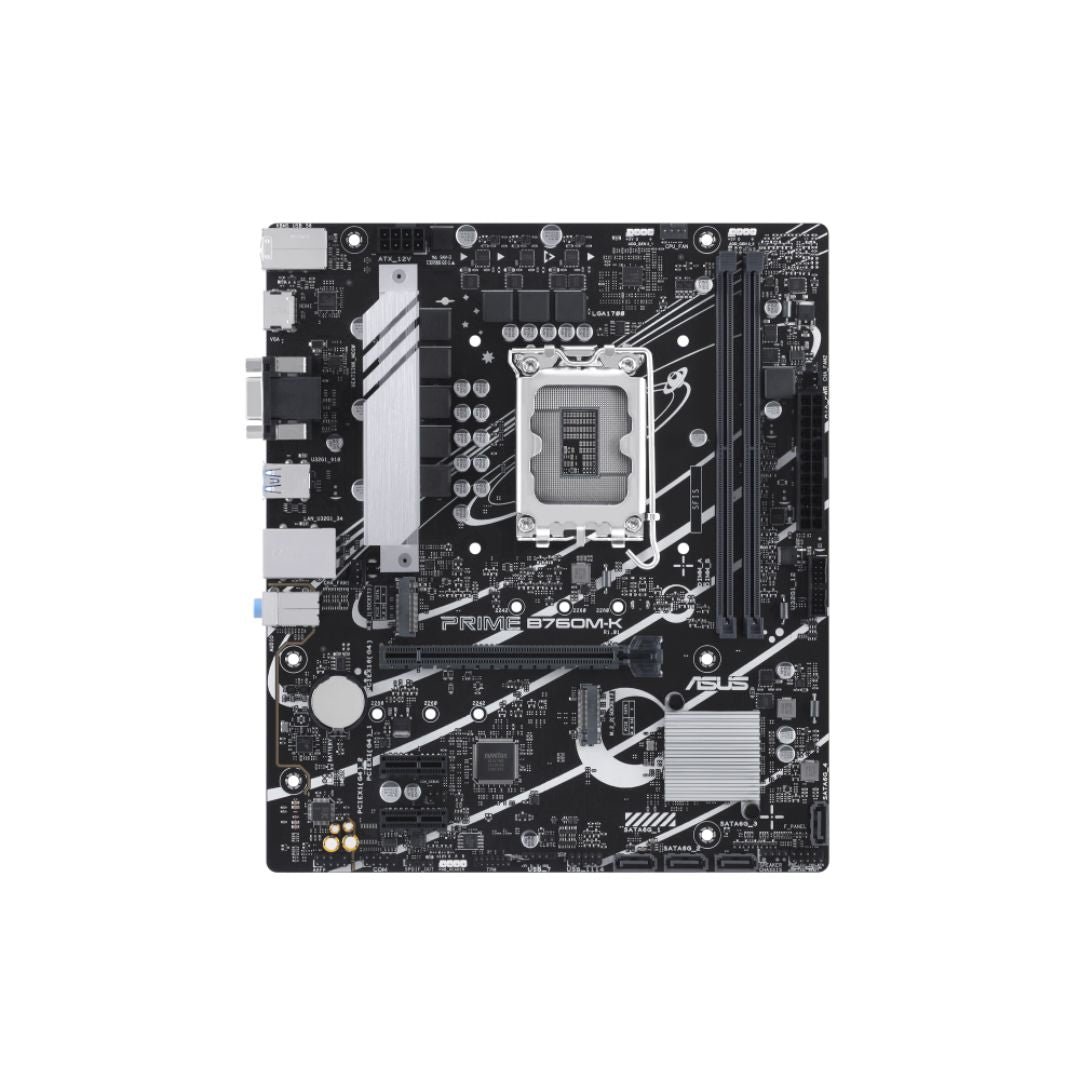

لوحة أم ASUS PRIME B760M-K D5

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® المعالجs)
• Chipset: Intel® B760

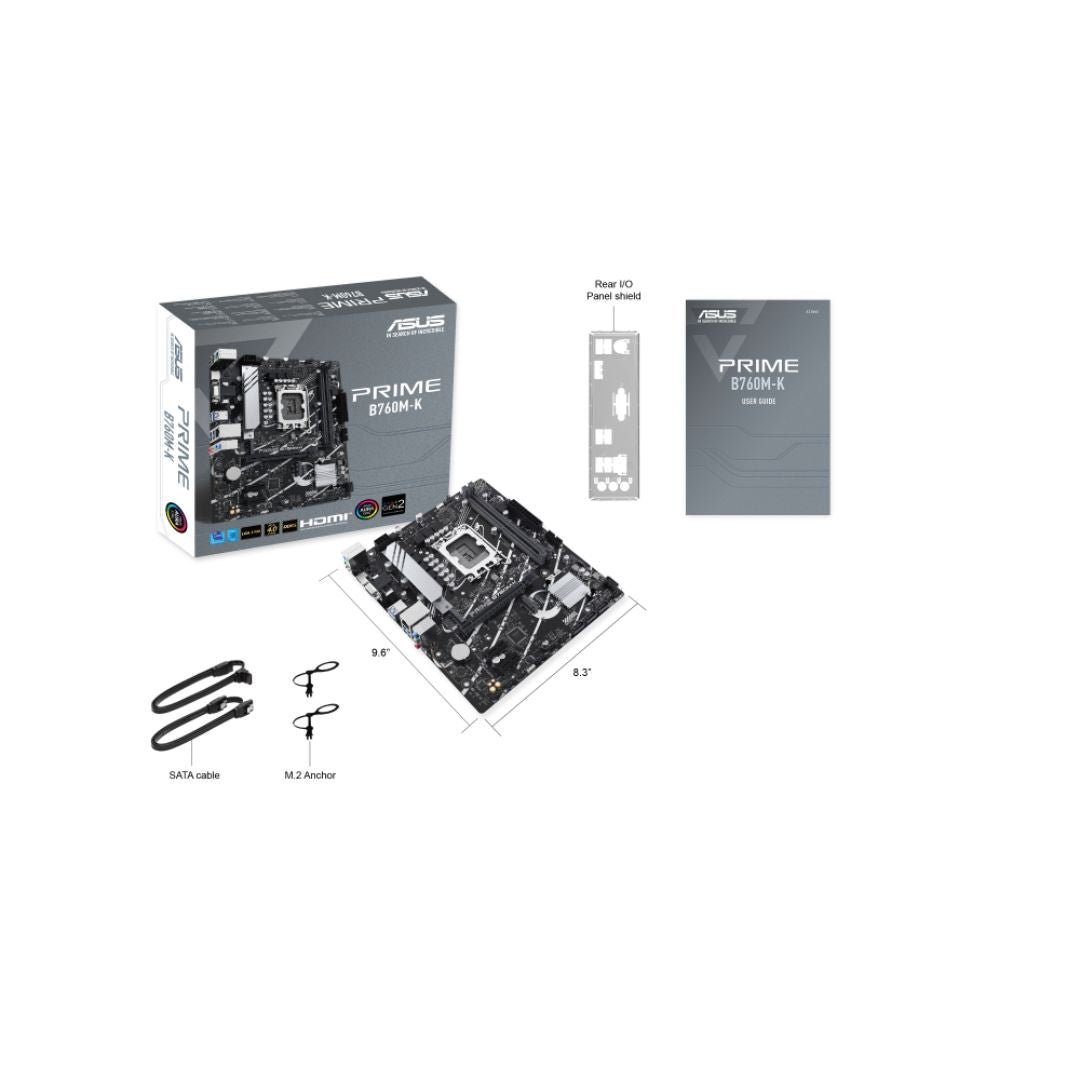

• عامل الشكل: Micro-ATX (9.6 in x 8.3 in / 24.4 cm x 21.1 cm)
• الذاكرة Support: DDR5 (Supports DDR5 8000+(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 MHz, لاn-ECC, Un-buffered, Dual-Channel, Intel® XMP 3.0, ASUS Enhanced الذاكرة Profile II)
• الذاكرة Slots & Max Capacity: 2x DIMM slots, Up to 96 GB (Supports single 48GB DIMMs)
• PCIe Expansion Slots:
◦ 1x PCIe 4.0 x16 slot (supports x16 mode from CPU, SafeSlot Core+)
◦ 2x PCIe 4.0 x1 slots (from B760 Chipset)
• M.2 التخزين Slots:
◦ 1x M.2_1 slot (Key M, type 2242/2260/2280 from CPU) — supports PCIe 4.0 x4 mode
◦ 1x M.2_2 slot (Key M, type 2242/2260/2280 from B760 Chipset) — supports PCIe 4.0 x4 mode
• SATA المنافذ: 4x SATA 6Gb/s

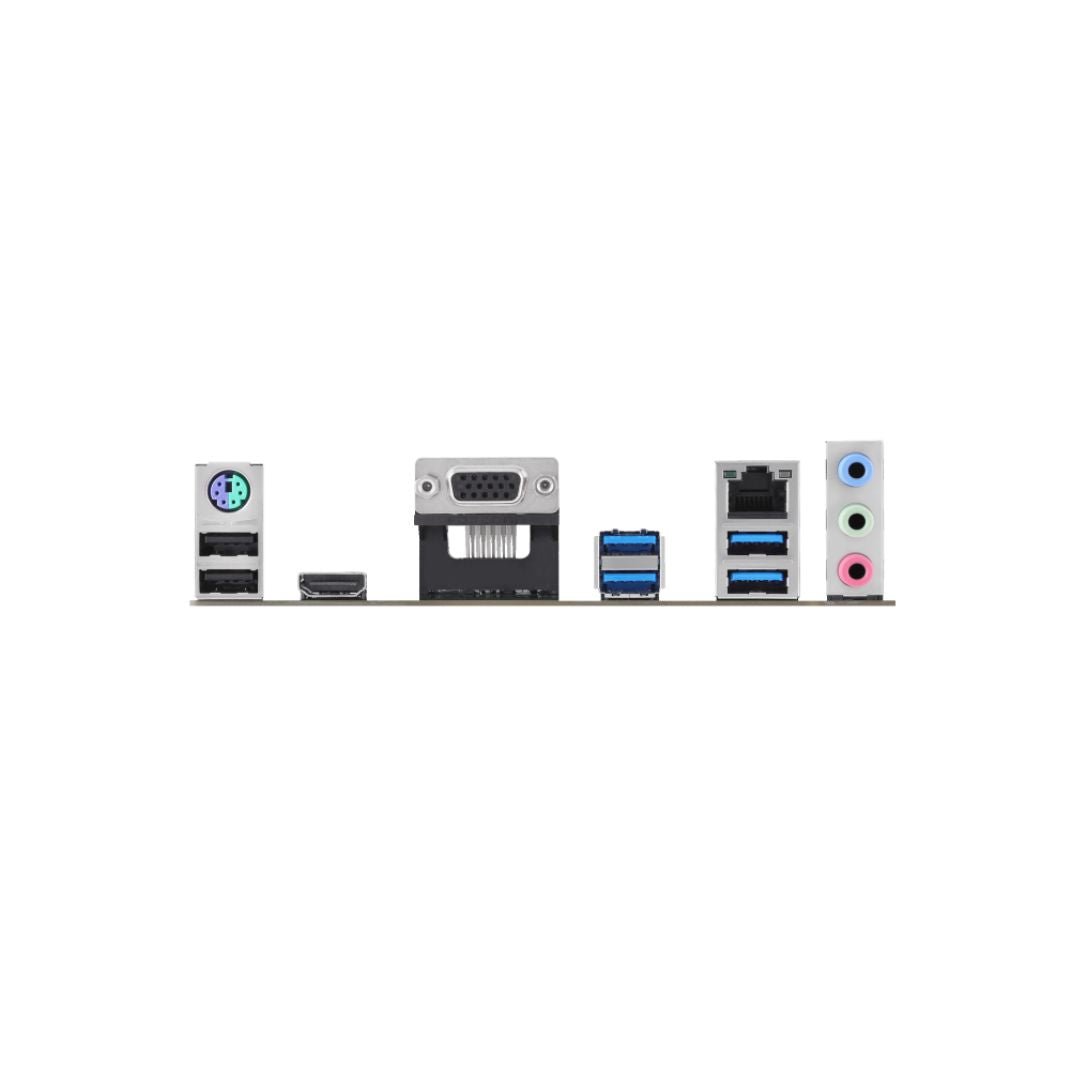

• Rear I/O USB المنافذ:
◦ 4x USB 3.2 Gen 1 النوع-A (5Gbps)
◦ 2x USB 2.0 النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 النوع-A ports)
◦ 2x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Networking & الاتصال: Realtek® 2.5Gb Ethernet (لا onboard Wi-Fi / Bluetooth)
• الشاشة Outputs:
◦ 1x HDMI 2.1 (supports up to 4K @ 60Hz)
◦ 1x VGA (supports up to 2048×1536 @ 60Hz)
• Audio Codec: Realtek® 7.1 Surround Sound High Definition Audio CODEC (with 3x Audio jacks)
• Power Delivery / Power Connectors: Digi+ VRM, 1x 24-pin ATX Main Power connector, 1x 8-pin ATX +12V Power connector
• RGB & Fan Headers:
◦ 1x 4-pin CPU Fan header
◦ 2x 4-pin Chassis Fan headers
◦ 2x Addressable Gen 2 headers (ARGB 5V)
◦ 1x Aura RGB header (12V)
• Special Features: Q-LED Core, VRM Heatsink, PS/2 Combo port, TPM header, Fan Xpert 2+
