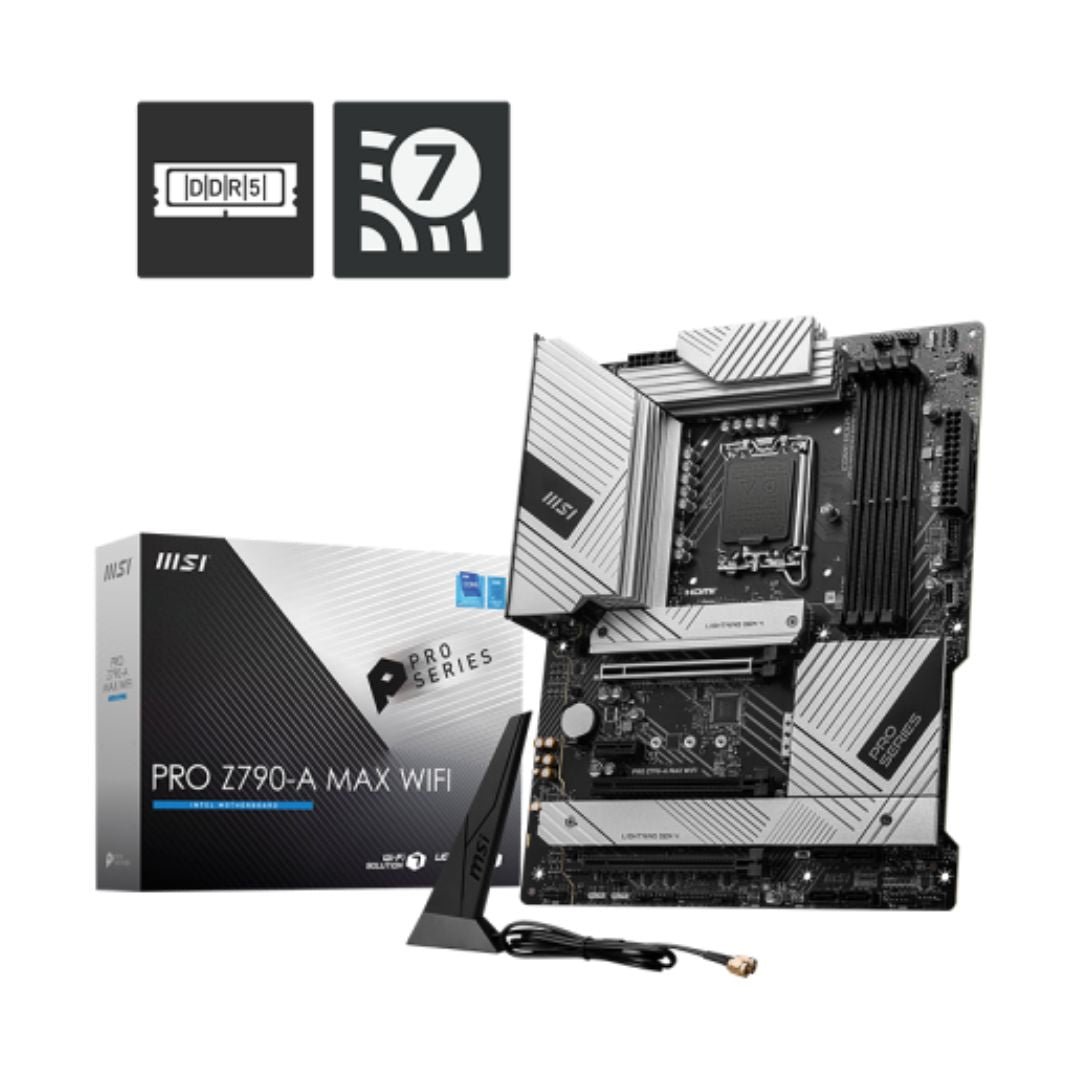

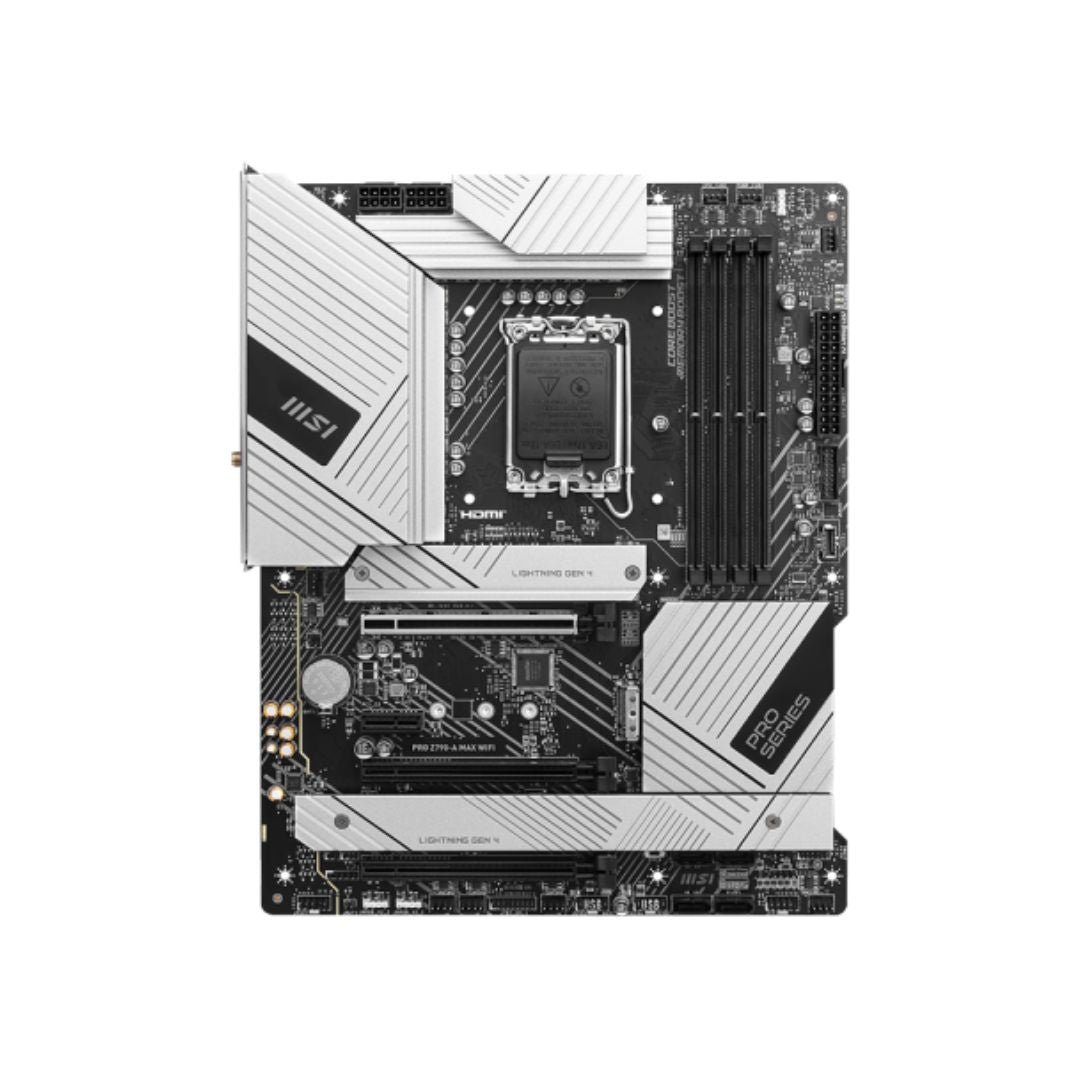

لوحة أم MSI PRO Z790-A MAX DDR5 WIFI

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® المعالجs)
• Chipset: Intel® Z790
• عامل الشكل: ATX (12.0 in x 9.6 in / 30.5 cm x 24.4 cm)
• الذاكرة Support: DDR5 (Supports DDR5 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 MHz, Dual-Channel, لاn-ECC Un-buffered, Intel® XMP 3.0, MSI الذاكرة Boost)
• الذاكرة Slots & Max Capacity: 4x DIMM slots, Up to 256 GB (Supports single 64GB DIMMs)
• PCIe Expansion Slots:
◦ 1x PCIe 5.0 x16 slot (PCI_E1; supports x16 mode from CPU, Steel Armor)
◦ 1x PCIe 4.0 x16 slot (PCI_E3; supports x4 mode from Z790 Chipset)
◦ 2x PCIe 3.0 x1 slots (PCI_E2, PCI_E4; from Z790 Chipset)
• M.2 التخزين Slots:
◦ 1x M.2_1 slot (Key M, type 2242/2260/2280/22110 from CPU) — supports PCIe 4.0 x4 mode, includes M.2 Shield Frozr
◦ 1x M.2_2 slot (Key M, type 2242/2260/2280 from Z790 Chipset) — supports PCIe 4.0 x4 mode
◦ 1x M.2_3 slot (Key M, type 2242/2260/2280 from Z790 Chipset) — supports PCIe 4.0 x4 & SATA 6Gb/s modes
◦ 1x M.2_4 slot (Key M, type 2242/2260/2280 from Z790 Chipset) — supports PCIe 4.0 x4 & SATA 6Gb/s modes
• SATA المنافذ: 6x SATA 6Gb/s (Supports RAID 0, 1, 5, 10)

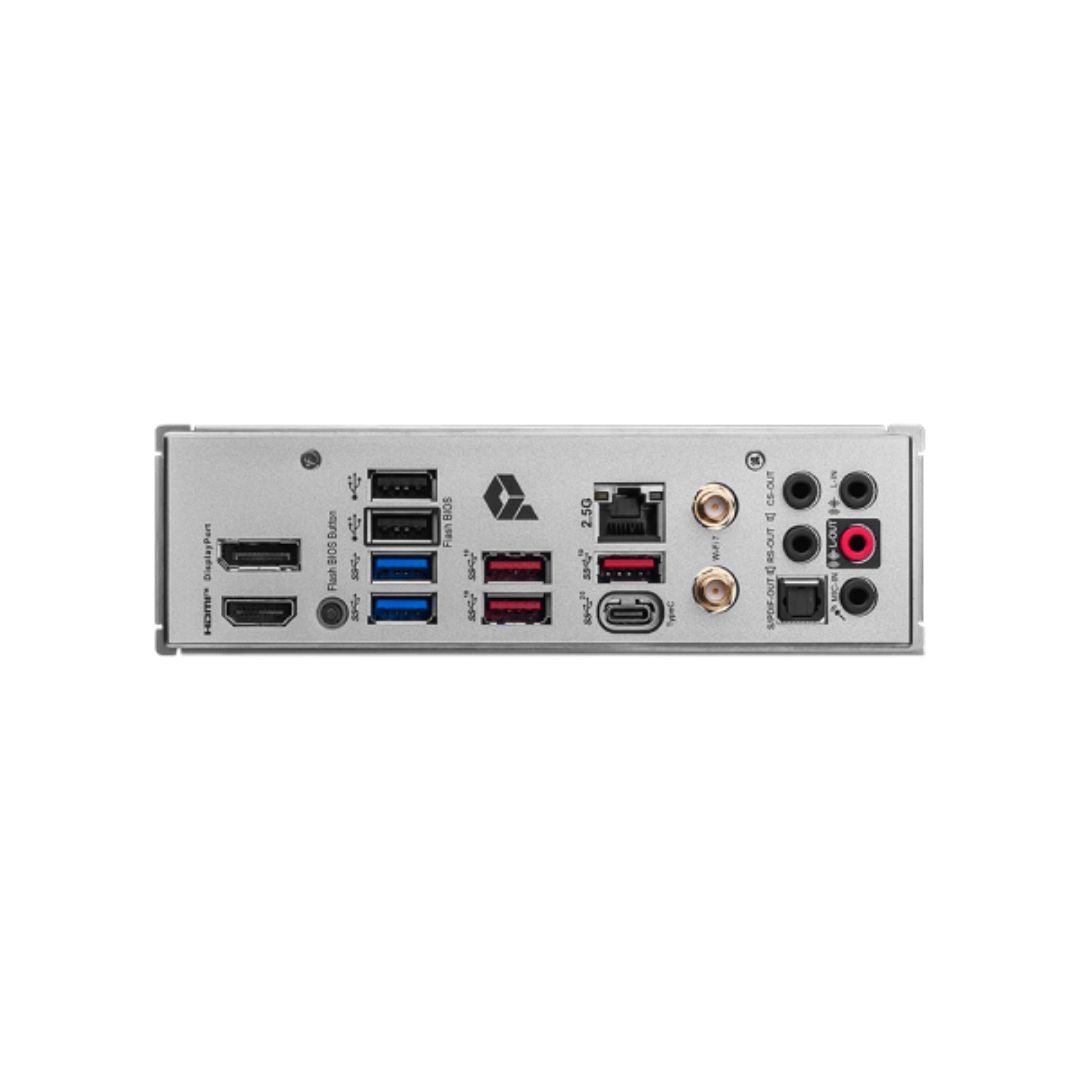

• Rear I/O USB المنافذ:
◦ 1x USB 3.2 Gen 2×2 النوع-C® (20Gbps)
◦ 3x USB 3.2 Gen 2 النوع-A (10Gbps)
◦ 2x USB 3.2 Gen 1 النوع-A (5Gbps)
◦ 2x USB 2.0 النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 3.2 Gen 2 النوع-C® header (10Gbps)
◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 النوع-A ports)
◦ 2x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Networking & الاتصال: Intel® 2.5Gb Ethernet (LAN Manager), Wi-Fi 7 (802.11be, 320MHz channel width), Bluetooth 5.4
• الشاشة Outputs:
◦ 1x الشاشةPort 1.4 (supports up to 8K @ 60Hz)
◦ 1x HDMI 2.1 (supports up to 4K @ 60Hz)
• Audio Codec: Realtek® ALC4080 7.1-Channel High Definition Audio CODEC (with Audio Boost 5, S/PDIF Out, Premium Capacitors)
• Power Delivery / Power Connectors: 16+1+1 Phase Duet Rail Power System (80A Smart Power Stage), 6-Layer PCB with 2oz Thickened Copper, 1x 24-pin ATX Main Power connector, 2x 8-pin ATX 12V Power connectors
• RGB & Fan Headers:
◦ 1x 4-pin CPU Fan header
◦ 1x 4-pin Water Pump Fan header (supports up to 3A)
◦ 6x 4-pin System Fan headers
◦ 3x Addressable V2 RGB LED headers (JARGB_V2 5V)
◦ 1x RGB LED header (JRGB 12V)
• Special Features: PCIe 5.0 Steel Armor, M.2 Shield Frozr, EZ M.2 Clips, Flash BIOS Button, EZ Debug LEDs, Pre-mounted I/O Shield, JTBT_U4_1 Thunderbolt 4 Card Header, TPM 2.0 header
