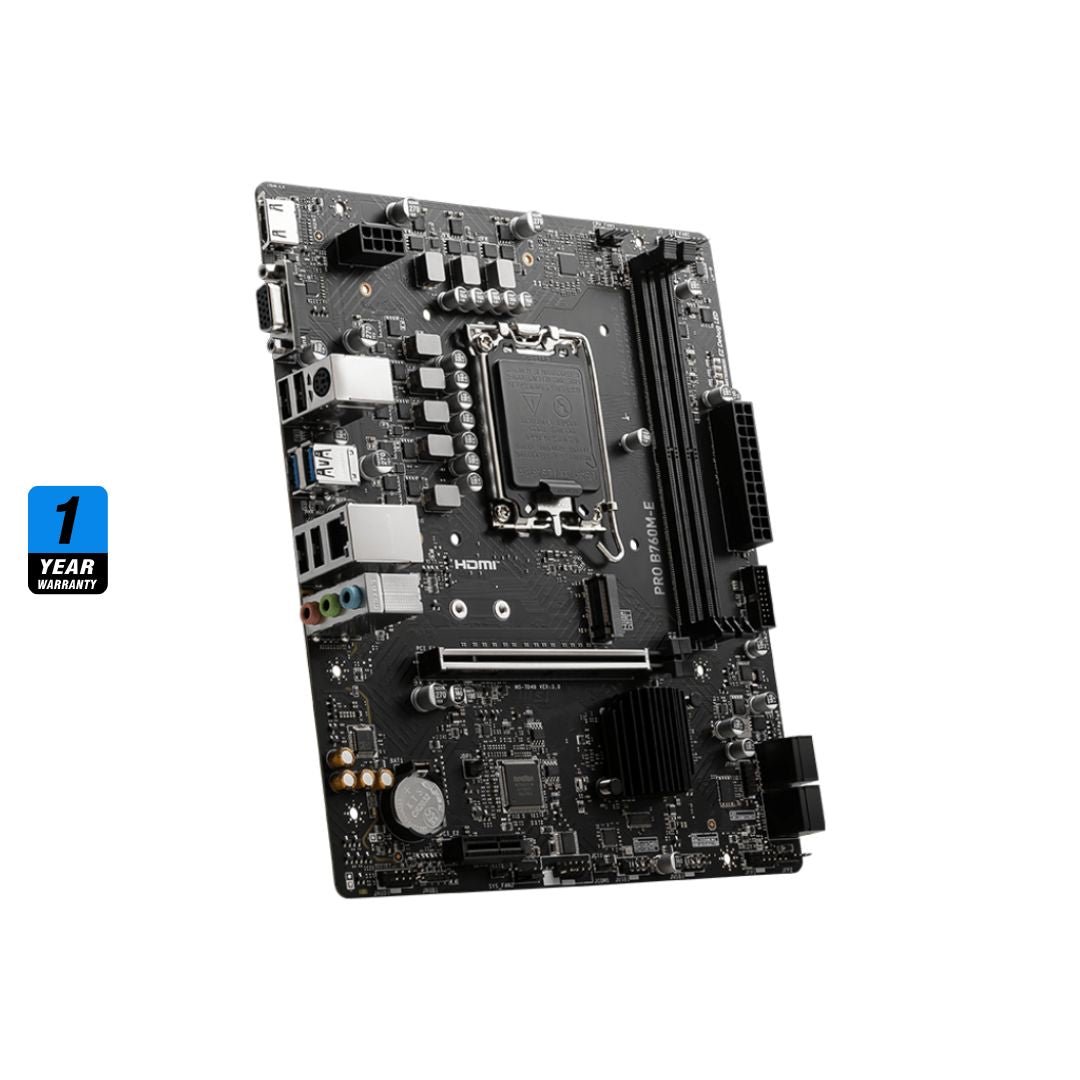

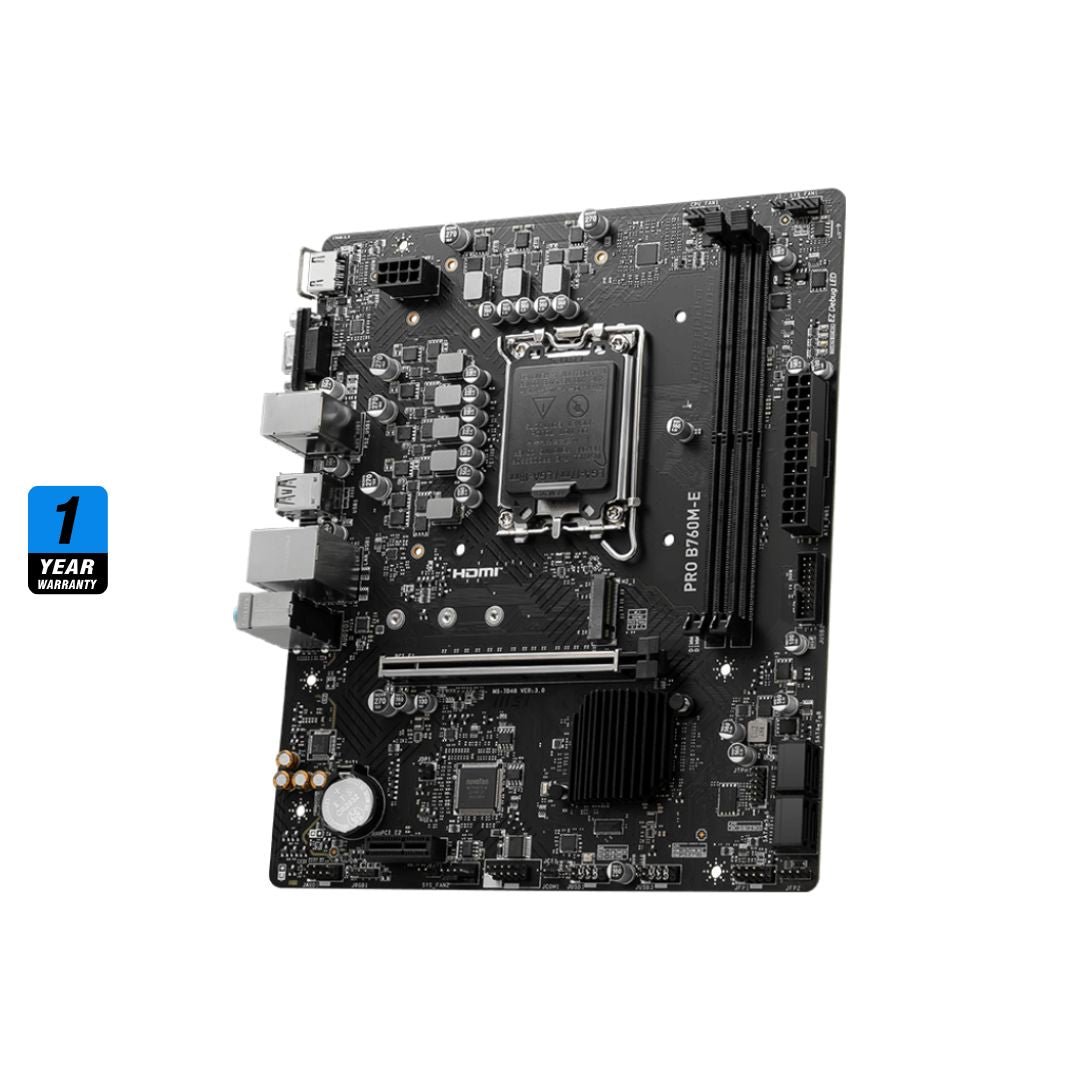

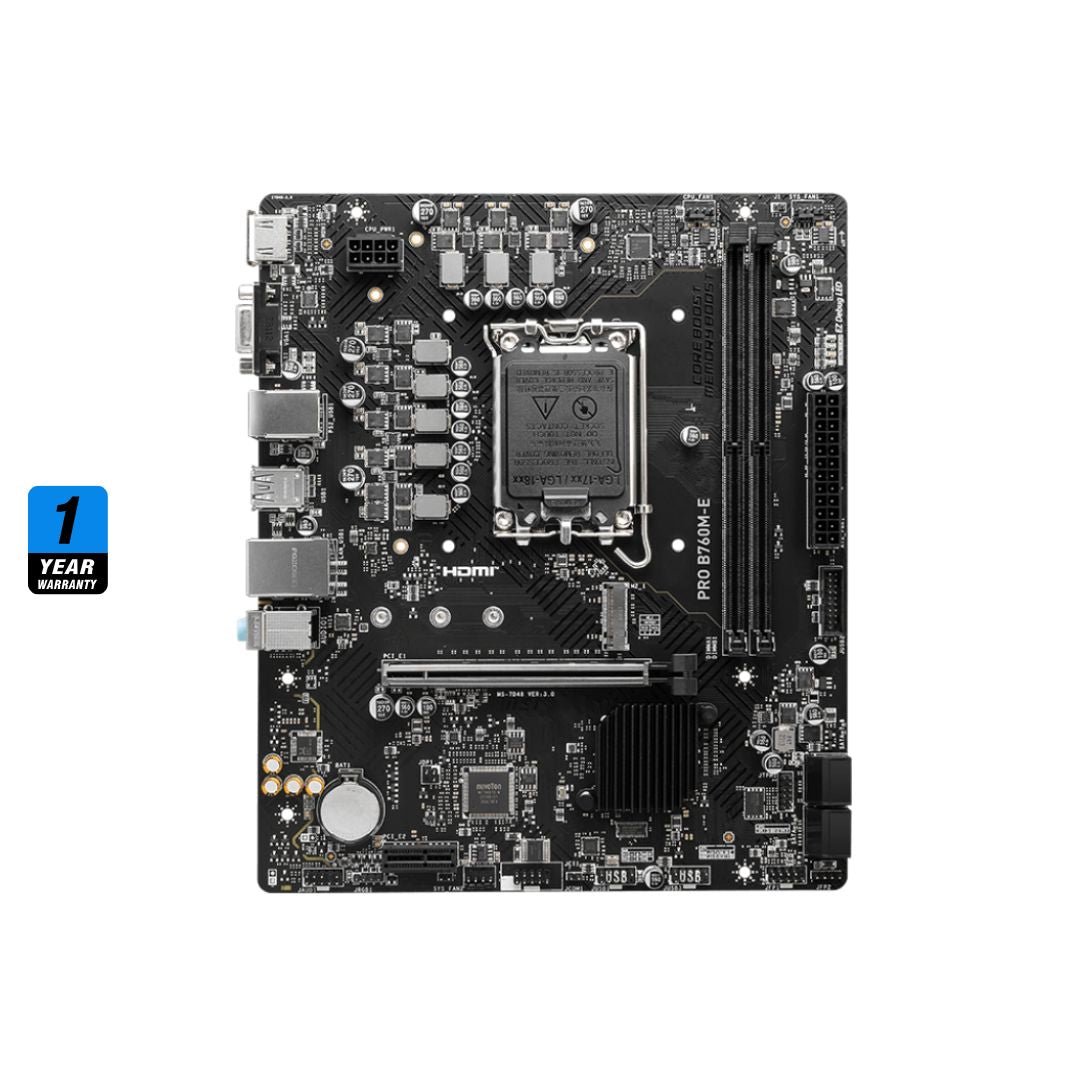

لوحة أم MSI PRO B760M-E D5

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® المعالجs)
• Chipset: Intel® B760
• عامل الشكل: Micro-ATX (9.3 in x 7.8 in / 23.6 cm x 20.0 cm)
• الذاكرة Support: DDR5 (Supports up to DDR5-6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 MHz, لاn-ECC, Un-buffered, Dual-Channel, Intel® XMP 3.0)
• الذاكرة Slots & Max Capacity: 2x DIMM slots, Up to 128 GB (Supports single 64GB DIMMs)
• PCIe Expansion Slots:
◦ 1x PCIe 4.0 x16 slot (PCI_E1; supports x16 mode from CPU, Steel Armor)
◦ 1x PCIe 3.0 x1 slot (PCI_E2; from B760 Chipset)
• M.2 التخزين Slots:
◦ 1x M.2 slot (Key M, type 2242/2260/2280 from B760 Chipset) — supports PCIe 4.0 x4 & SATA 6Gb/s modes
• SATA المنافذ: 4x SATA 6Gb/s (SATA5 disabled when using an M.2 SATA SSD)

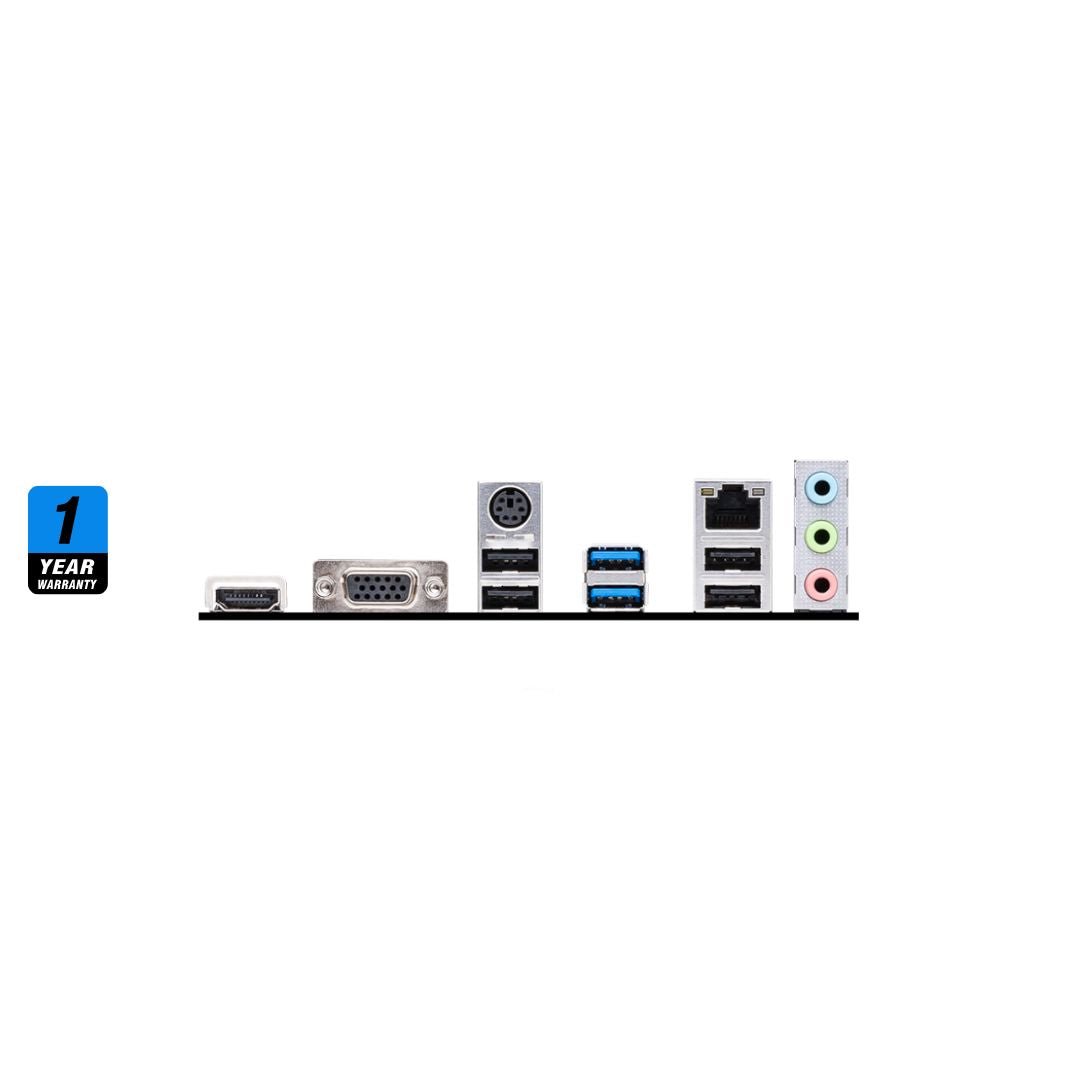

• Rear I/O USB المنافذ:
◦ 2x USB 3.2 Gen 1 النوع-A (5Gbps)
◦ 4x USB 2.0 النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 النوع-A ports)
◦ 2x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Networking & الاتصال: Realtek® RTL8111H 1Gbps LAN (لا onboard Wi-Fi / Bluetooth)
• الشاشة Outputs:
◦ 1x HDMI 1.4 with HDR (supports up to 4K @ 30Hz)
◦ 1x VGA (supports up to 2048×1536 @ 50Hz / 2048×1280 @ 60Hz)
• Audio Codec: Realtek® ALC897 7.1-Channel High Definition Audio CODEC (with 3x Audio jacks)
• Power Delivery / Power Connectors: Core Boost digital power design, 1x 24-pin ATX Main Power connector, 1x 8-pin ATX 12V Power connector
• RGB & Fan Headers:
◦ 1x 4-pin CPU Fan header
◦ 2x 4-pin System Fan headers
◦ 1x 4-pin RGB LED header (12V JRGB)
• Special Features: 4x EZ Debug LEDs (CPU, DRAM, VGA, BOOT), Steel Armor PCIe slot, PS/2 Combo port, TPM 2.0 pin header
