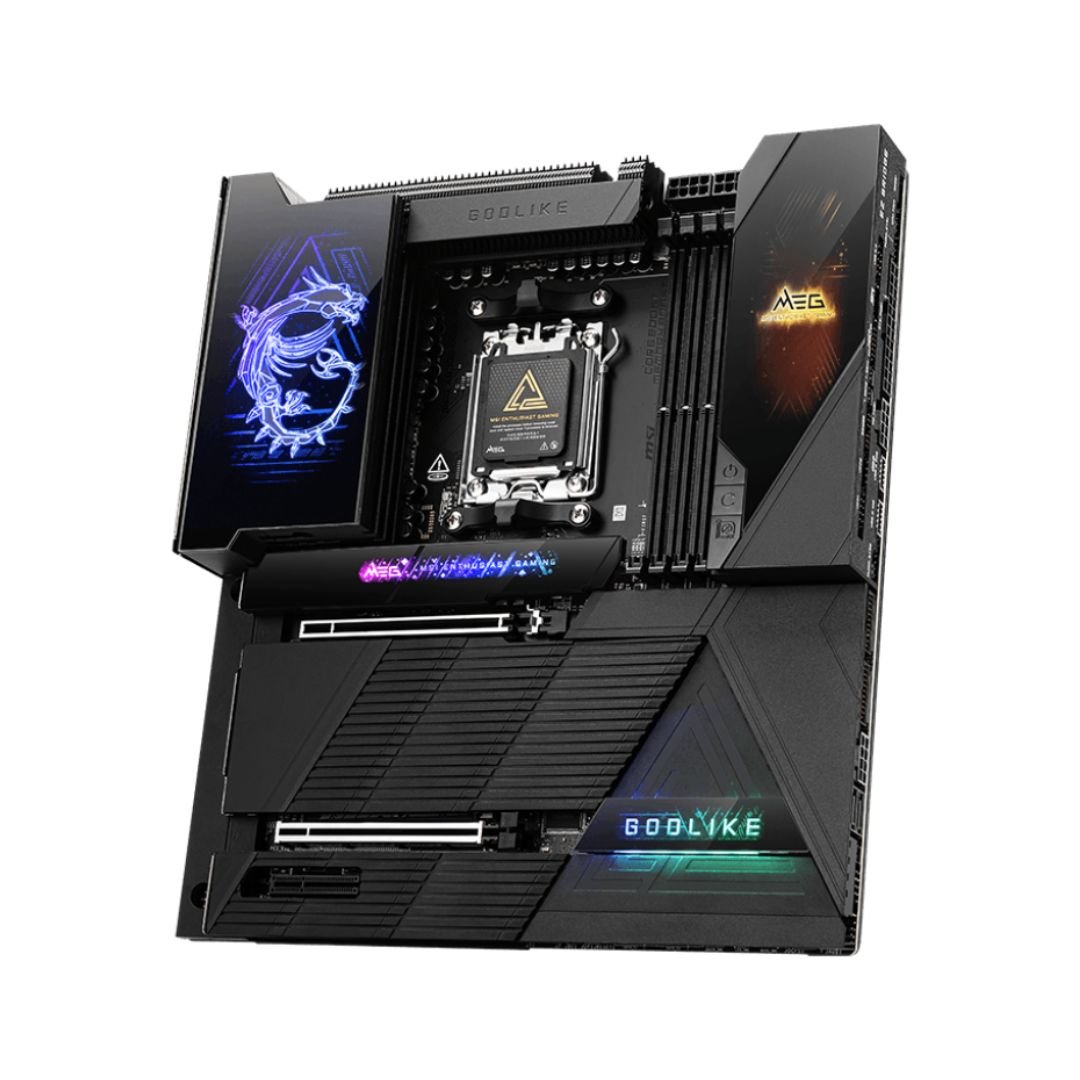

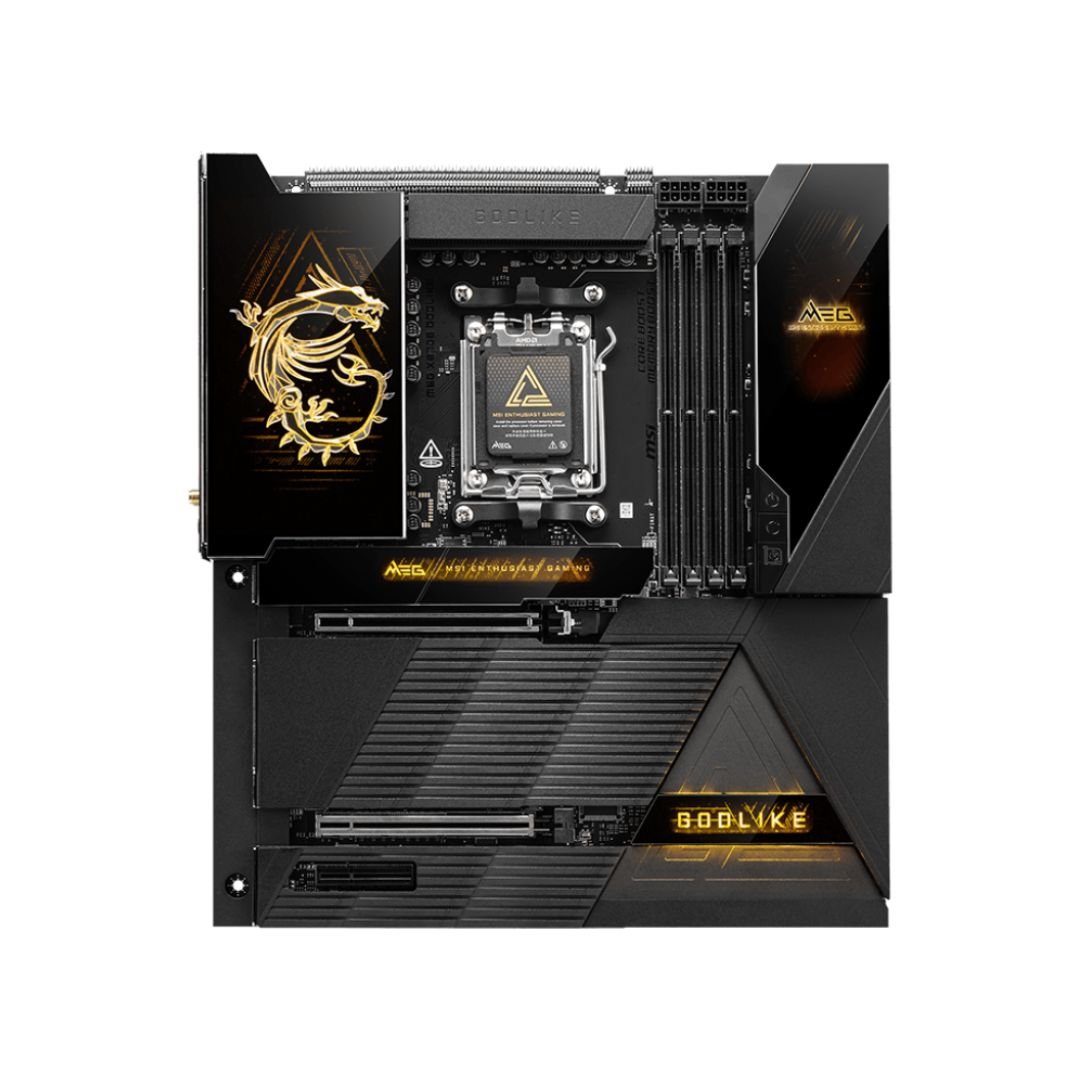

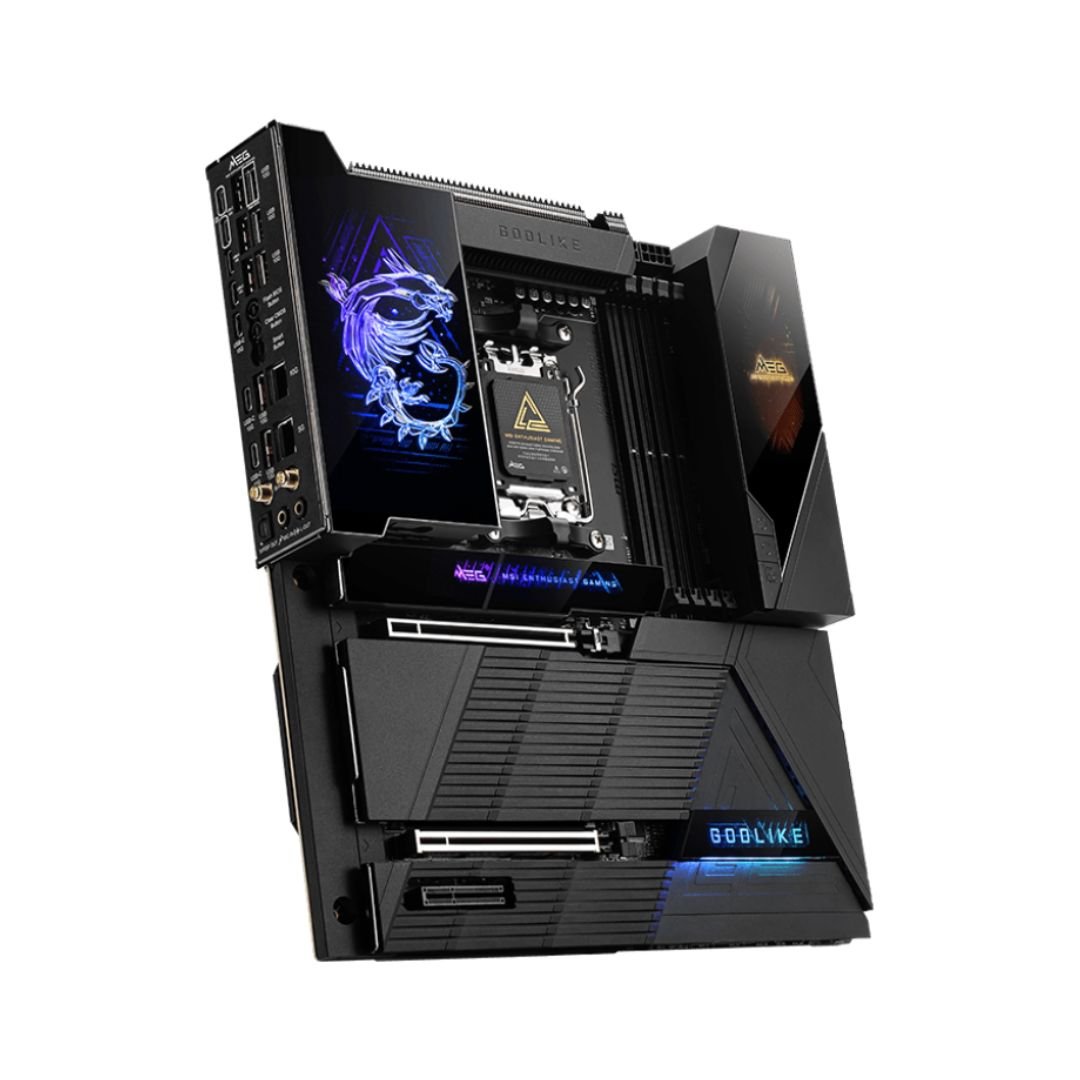

لوحة أم MSI MEG X870E GODLIKE

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: AMD Socket AM5 (Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop المعالجs)
• Chipset: AMD X870E
• عامل الشكل: E-ATX (12.0 in x 11.3 in / 304.8 mm x 288 mm)
• الذاكرة Support: DDR5 (Supports up to DDR5-9200+(OC) MT/s, AMD EXPO™, Dual-Channel, CUDIMM bypass mode support, لاn-ECC Un-buffered)
• الذاكرة Slots & Max Capacity: 4x DIMM slots, Up to 256 GB
• PCIe Expansion Slots:
◦ 2x PCIe 5.0 x16 slots (PCI_E1 & PCI_E2; support x16/x0 or x8/x8 mode with Ryzen™ 9000/7000 Series CPUs)
◦ 1x PCIe 4.0 x16 slot (PCI_E3; supports x4 mode from Chipset)
• M.2 التخزين Slots:
◦ 2x Onboard M.2 Gen5 slots (M2_1 & M2_2, Key M, type 2260/2280/22110 from CPU) — support up to PCIe 5.0 x4 (M2_2 shares bandwidth with rear USB4® 40Gbps ports)
◦ 3x Onboard M.2 Gen4 slots (M2_3, M2_4, M2_5, Key M, type 2260/2280 from Chipset) — support up to PCIe 4.0 x4
◦ (Includes bundled M.2 XPANDER-Z SLIDER GEN5 add-in card providing 2x additional PCIe 5.0 x4 M.2 slots via PCIe x16 slot)
• SATA المنافذ: 4x SATA 6Gb/s (Supports RAID 0, 1, 5, 10 for M.2 NVMe; RAID 0, 1, 10 for SATA)

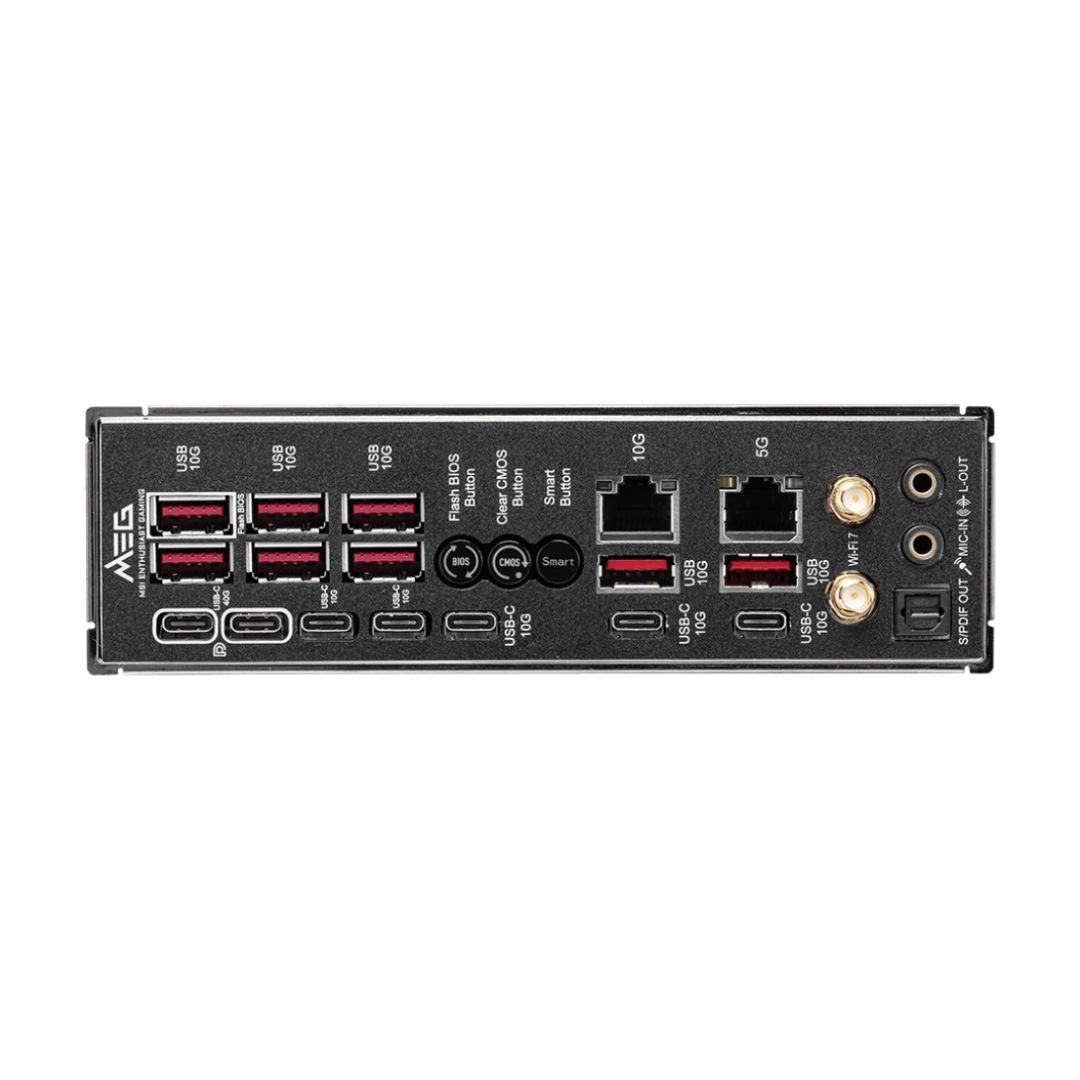

• Rear I/O USB المنافذ:
◦ 2x USB4® 40Gbps النوع-C (supports الشاشةPort 1.4 output)
◦ 5x USB 10Gbps النوع-C
◦ 8x USB 10Gbps النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 20Gbps النوع-C header (supports 60W USB Power Delivery / Fast Charge)
◦ 1x USB 10Gbps النوع-C header
◦ 2x USB 5Gbps headers (support 4 additional USB 5Gbps النوع-A ports)
◦ 2x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Networking & الاتصال: Dual LAN — 1x Marvell® AQC113CS 10Gbps Ethernet + 1x Realtek® 5Gbps Ethernet; Wi-Fi 7 (802.11be, 320MHz channel bandwidth, up to 5.8Gbps), Bluetooth 5.4
• الشاشة Outputs:
◦ 2x USB4® النوع-C الشاشةPort 1.4 (supports up to 4K @ 120Hz)
• Audio Codec: Realtek® ALC4082 Codec + ESS ES9219Q Combo DAC/HIFI Transceiver (7.1-Channel High Performance Audio, Optical S/PDIF output)
• Power Delivery / Power Connectors: 24+2+1 Duet Rail Power System (110A Smart Power Stage), 1x 24-pin Main Power, 2x 8-pin CPU +12V Power, 2x 8-pin PCIe Supplemental Power
• RGB & Fan Headers (including EZ Control Hub / EZ Link):
◦ 1x 4-pin CPU Fan header
◦ 2x 4-pin Water Pump Fan headers
◦ 7x 4-pin System Fan headers
◦ 2x Addressable Gen 2 RGB headers (JARGB_V2 5V)
◦ 1x RGB LED header (JRGB 12V)
◦ 1x Water Flow Header
• Special Features: 3.99-inch full-color LCD Dynamic Dashboard III, EZ Link magnetic cable management system, EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II, Smart Button, Clear CMOS Button, Flash BIOS Button, Bundled M.2 XPANDER-Z SLIDER GEN5 card
