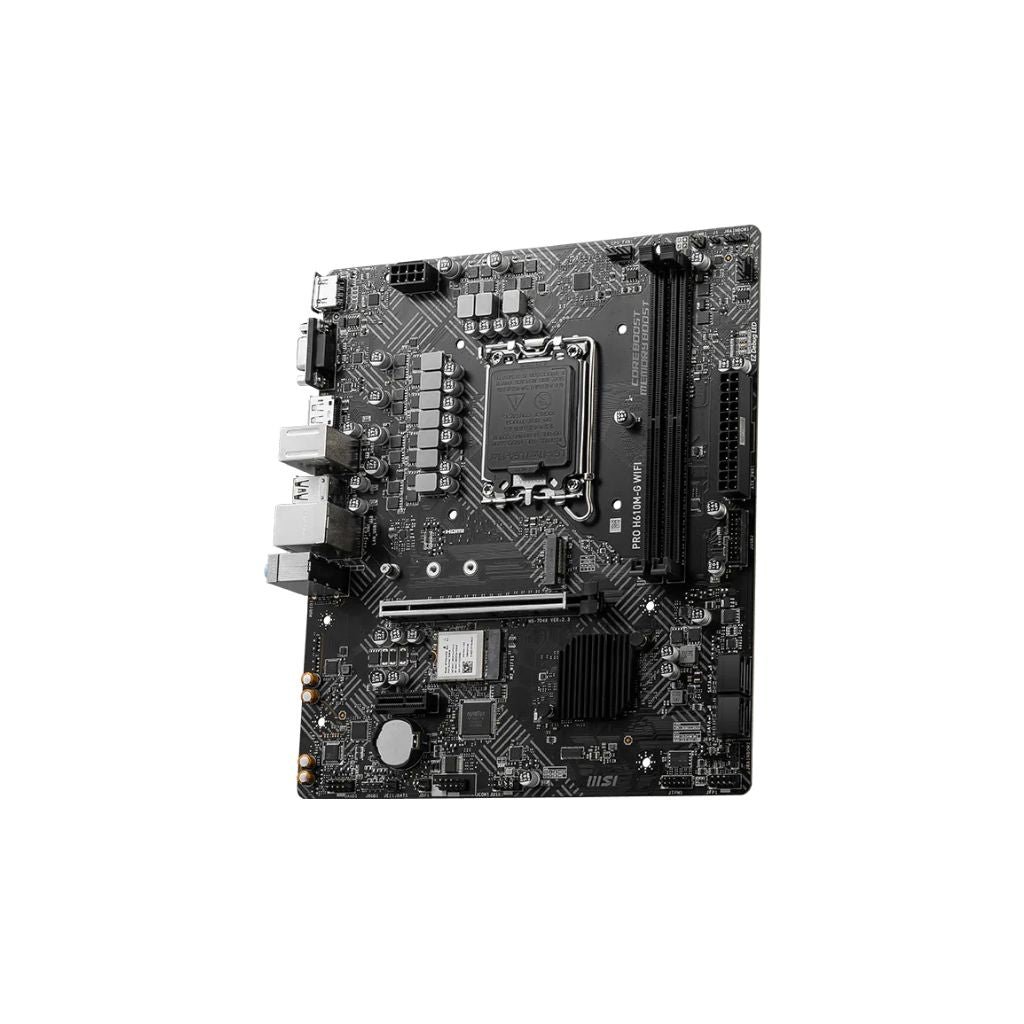

لوحة أم MSI MB MSI PRO H610M-G WIFI D5 Motherboard

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® المعالجs)
• Chipset: Intel® H610
• عامل الشكل: Micro-ATX (9.6 in x 8.3 in / 24.4 cm x 21.1 cm)
• الذاكرة Support: DDR5 (Supports up to DDR5 5600 MHz, Intel® XMP 3.0, Dual-Channel, لاn-ECC Un-buffered)
• الذاكرة Slots & Max Capacity: 2x DIMM slots, Up to 96 GB
• PCIe Expansion Slots:
◦ 1x PCIe 4.0 x16 slot (PCI_E1; supports x16 mode from CPU, Steel Armor)
◦ 1x PCIe 3.0 x1 slot (PCI_E2; from H610 Chipset)
◦ 1x M.2 slot Key E (pre-installed Wi-Fi 6E module)
• M.2 التخزين Slots:
◦ 1x M.2 slot (Key M, type 2242/2260/2280 from H610 Chipset) — supports PCIe 3.0 x4 & SATA 6Gb/s modes
• SATA المنافذ: 4x SATA 6Gb/s (SATA7 disabled when using an M.2 SATA SSD)
• Rear I/O USB المنافذ:
◦ 2x USB 3.2 Gen 1 النوع-A (5Gbps)
◦ 4x USB 2.0 النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 النوع-A ports)
◦ 1x USB 2.0 header (supports 2 additional USB 2.0 ports)
• Networking & الاتصال: Intel® I219V 1Gbps LAN, Pre-installed Wi-Fi 6E module (802.11ax 2×2, 6GHz), Bluetooth 5.3
• الشاشة Outputs:
◦ 1x الشاشةPort 1.4 (supports up to 4K @ 60Hz)
◦ 1x HDMI 2.1 with HDR (supports up to 4K @ 60Hz)
◦ 1x VGA (supports up to 2048×1536 @ 50Hz / 2048×1280 @ 60Hz)
• Audio Codec: Realtek® ALC897 7.1-Channel High Definition Audio CODEC (with 3x Audio jacks)
• Power Delivery / Power Connectors: Core Boost digital power design, 1x 24-pin ATX Main Power connector, 1x 8-pin ATX 12V Power connector
• RGB & Fan Headers:
◦ 1x 4-pin CPU Fan header
◦ 1x 4-pin System Fan header
◦ 2x 3-pin RAINBOW ARGB headers (5V)
◦ 1x 4-pin RGB LED header (12V)
• Special Features: Onboard Wi-Fi 6E, 4x EZ Debug LEDs (CPU, DRAM, VGA, BOOT), Steel Armor PCIe slot, PS/2 Combo port, TPM 2.0 header
