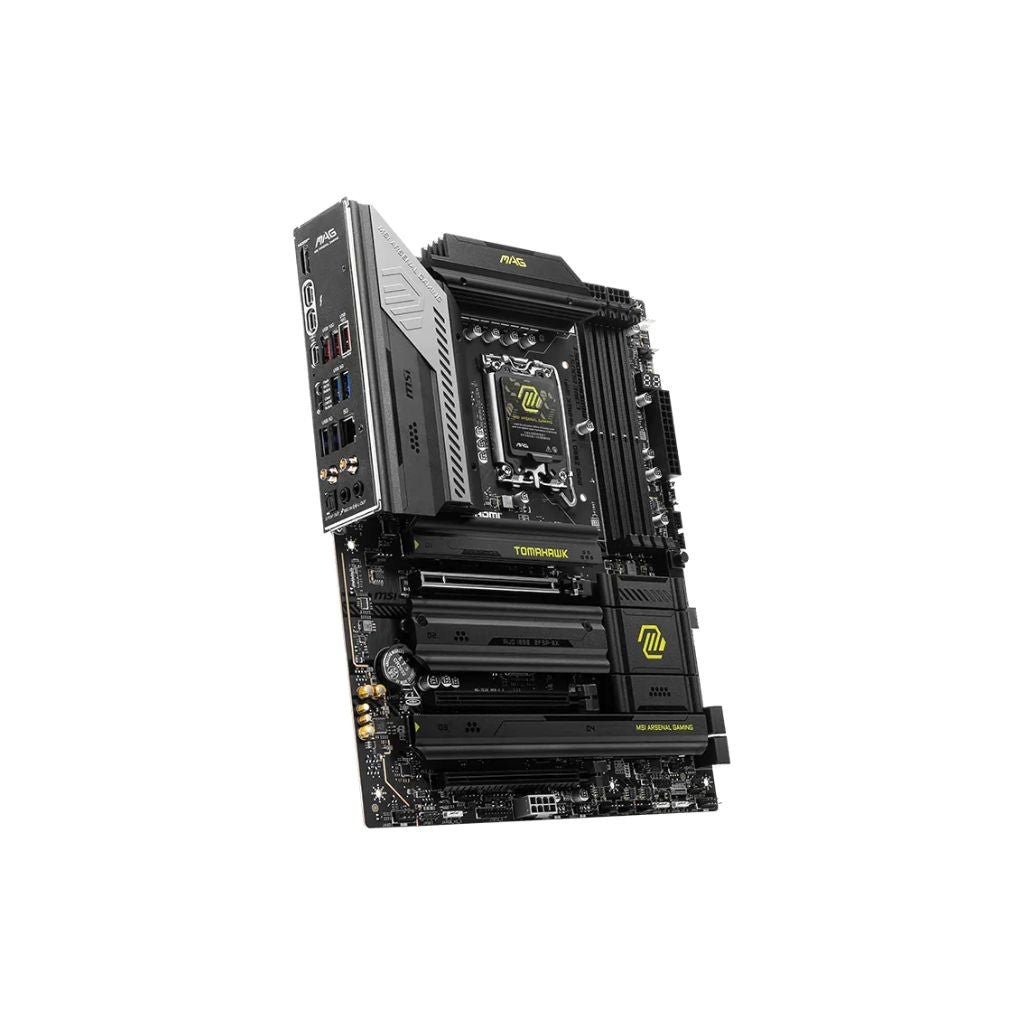

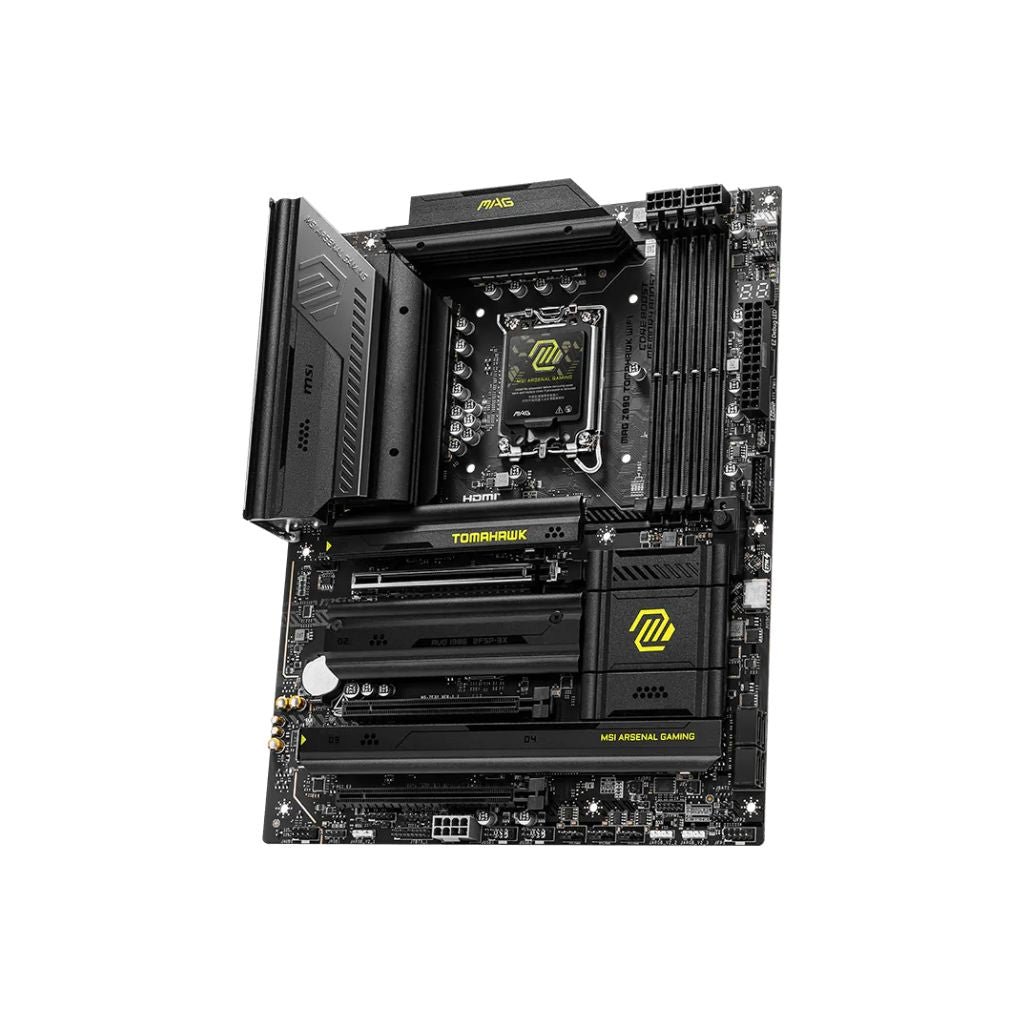

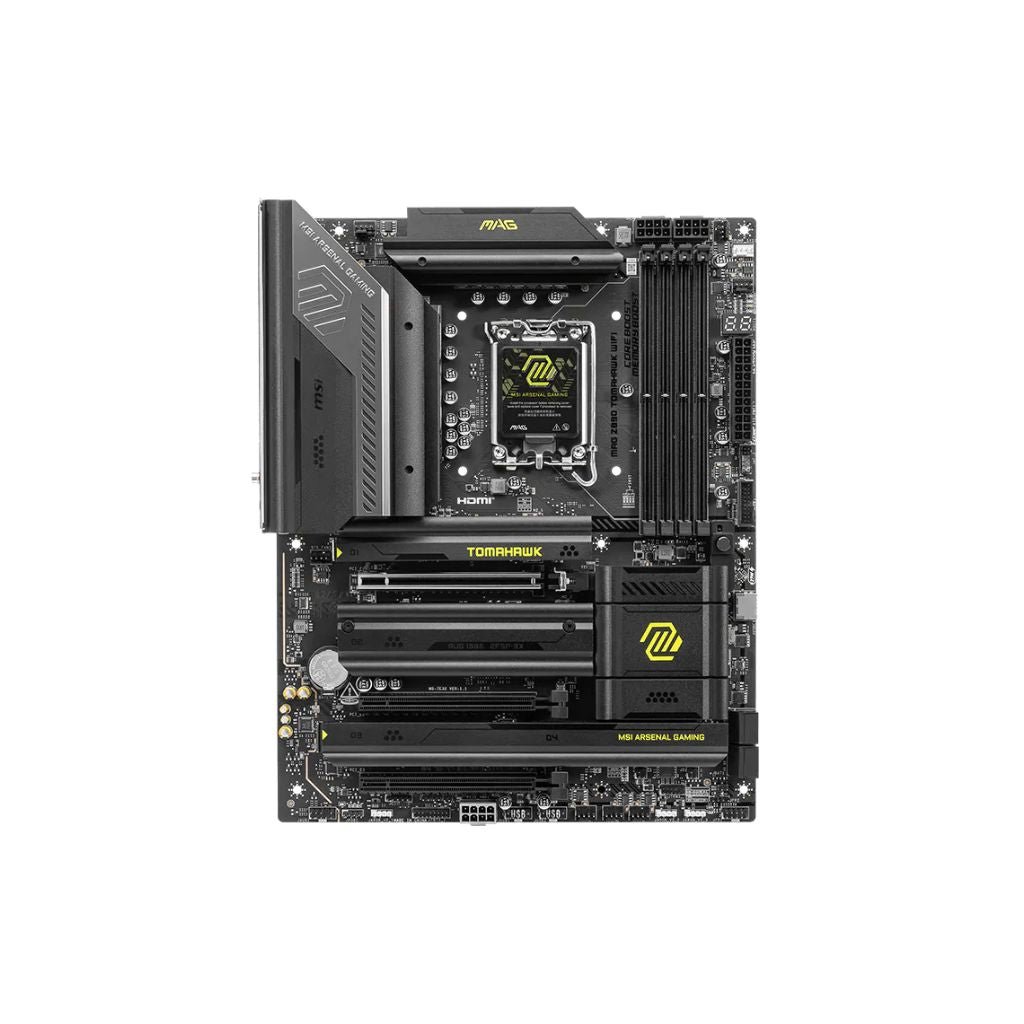

لوحة أم MSI MAG Z890 TOMAHAWK WIFI

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: Intel Socket LGA 1851 (Supports Intel® Core™ Ultra المعالجs – Series 2)
• Chipset: Intel® Z890
• عامل الشكل: ATX (12.0 in x 9.6 in / 30.48 cm x 24.38 cm)
• الذاكرة Support: DDR5 (Supports up to DDR5-9200+(OC) MT/s, Intel® XMP 3.0, CUDIMM support, Dual-Channel, لاn-ECC Un-buffered)
• الذاكرة Slots & Max Capacity: 4x DIMM slots, Up to 256 GB
• PCIe Expansion Slots:
◦ 1x PCIe 5.0 x16 slot (PCI_E1; supports up to x16 mode from CPU)
◦ 2x PCIe 4.0 x16 slots (PCI_E2 & PCI_E3; support up to x4 mode from Chipset)
• M.2 التخزين Slots:
◦ 1x M.2_1 slot (Key M, type 2260/2280 from CPU) — supports up to PCIe 5.0 x4
◦ 1x M.2_2 slot (Key M, type 2260/2280/22110 from CPU) — supports up to PCIe 4.0 x4
◦ 1x M.2_3 slot (Key M, type 2242/2260/2280 from Chipset) — supports up to PCIe 4.0 x4
◦ 1x M.2_4 slot (Key M, type 2242/2260/2280 from Chipset) — supports up to PCIe 4.0 x4 & SATA modes
• SATA المنافذ: 4x SATA 6Gb/s (Supports RAID 0, 1, 5, 10 for SATA & M.2 NVMe)

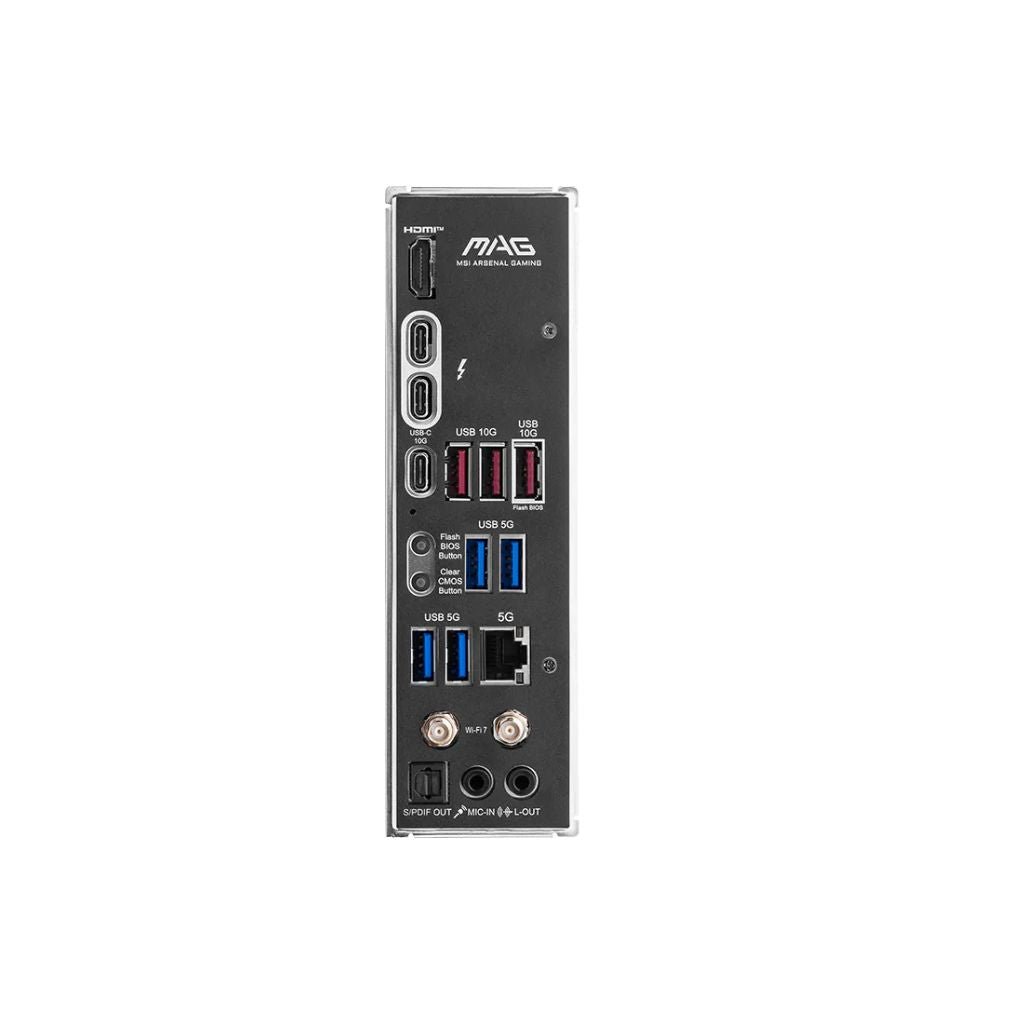

• Rear I/O USB & Thunderbolt المنافذ:
◦ 2x Thunderbolt™ 4 40Gbps النوع-C (supports الشاشةPort 2.1 / 1.4 output & up to 15W charging)
◦ 1x USB 10Gbps النوع-C
◦ 3x USB 10Gbps النوع-A
◦ 4x USB 5Gbps النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 20Gbps النوع-C header (supports PD 27W fast charging)
◦ 1x USB 5Gbps header (supports 2 additional USB 5Gbps النوع-A ports)
◦ 2x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Networking & الاتصال: Intel® Killer™ E5000 5Gbps Ethernet, Intel® Killer™ BE1750x Wi-Fi 7 (802.11be, 320MHz channel bandwidth, up to 5.8Gbps), Bluetooth 5.4
• الشاشة Outputs:
◦ 1x HDMI 2.1 with FRL (supports up to 4K @ 120Hz)
◦ 2x Thunderbolt™ 4 النوع-C (supports الشاشةPort over USB-C up to 8K @ 60Hz / 4K @ 120Hz)
• Audio Codec: Realtek® ALC1220P 7.1-Channel High Definition Audio (Supports S/PDIF output)
• Power Delivery / Power Connectors: 16+1+1+1 Duet Rail Power System (90A SPS), 1x 24-pin Main Power, 2x 8-pin CPU +12V Power, 1x 8-pin PCIe Supplemental Power
• RGB & Fan Headers:
◦ 1x 4-pin CPU Fan header
◦ 1x 4-pin Combo Fan header (Pump/System Fan)
◦ 6x 4-pin System Fan headers
◦ 3x Addressable Gen 2 RGB headers (JARGB_V2 5V)
◦ 1x RGB LED header (JRGB 12V)
• Special Features: EZ PCIe Release button, EZ M.2 Shield Frozr II, EZ Conn-header (JAF_2), Clear CMOS Button, Flash BIOS Button, EZ Digit Debug LED, Thunderbolt™ 5 card header support (JTBT5)
