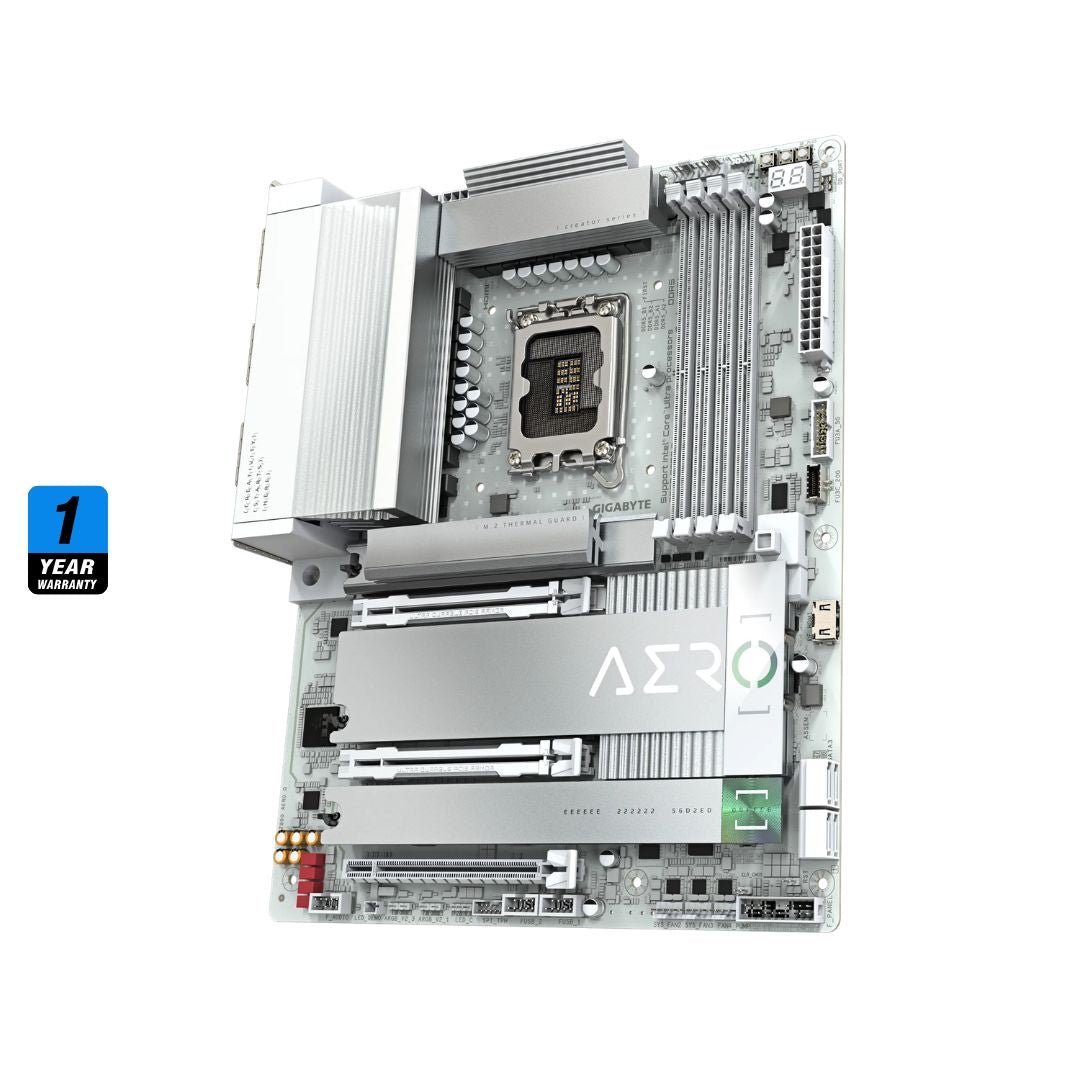

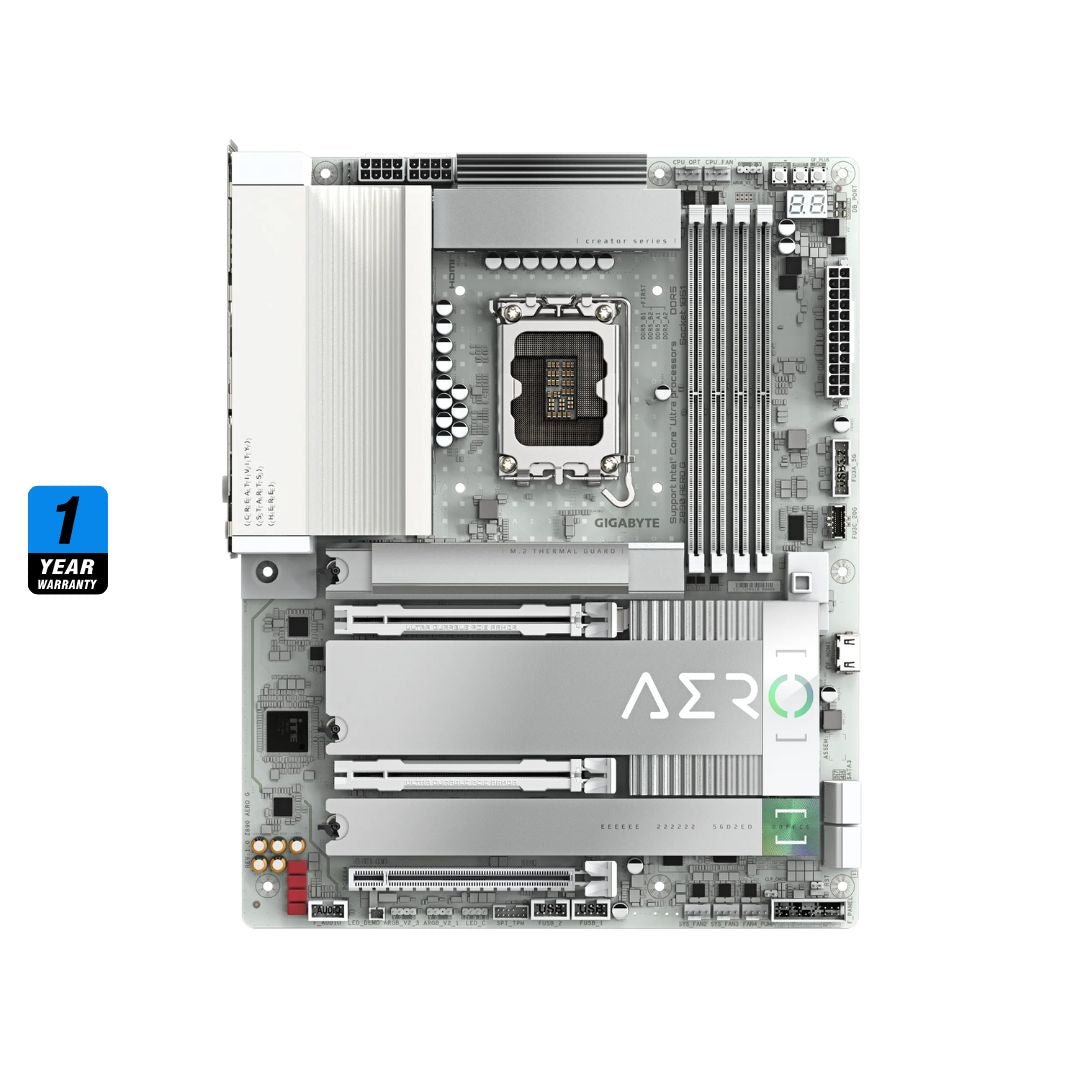

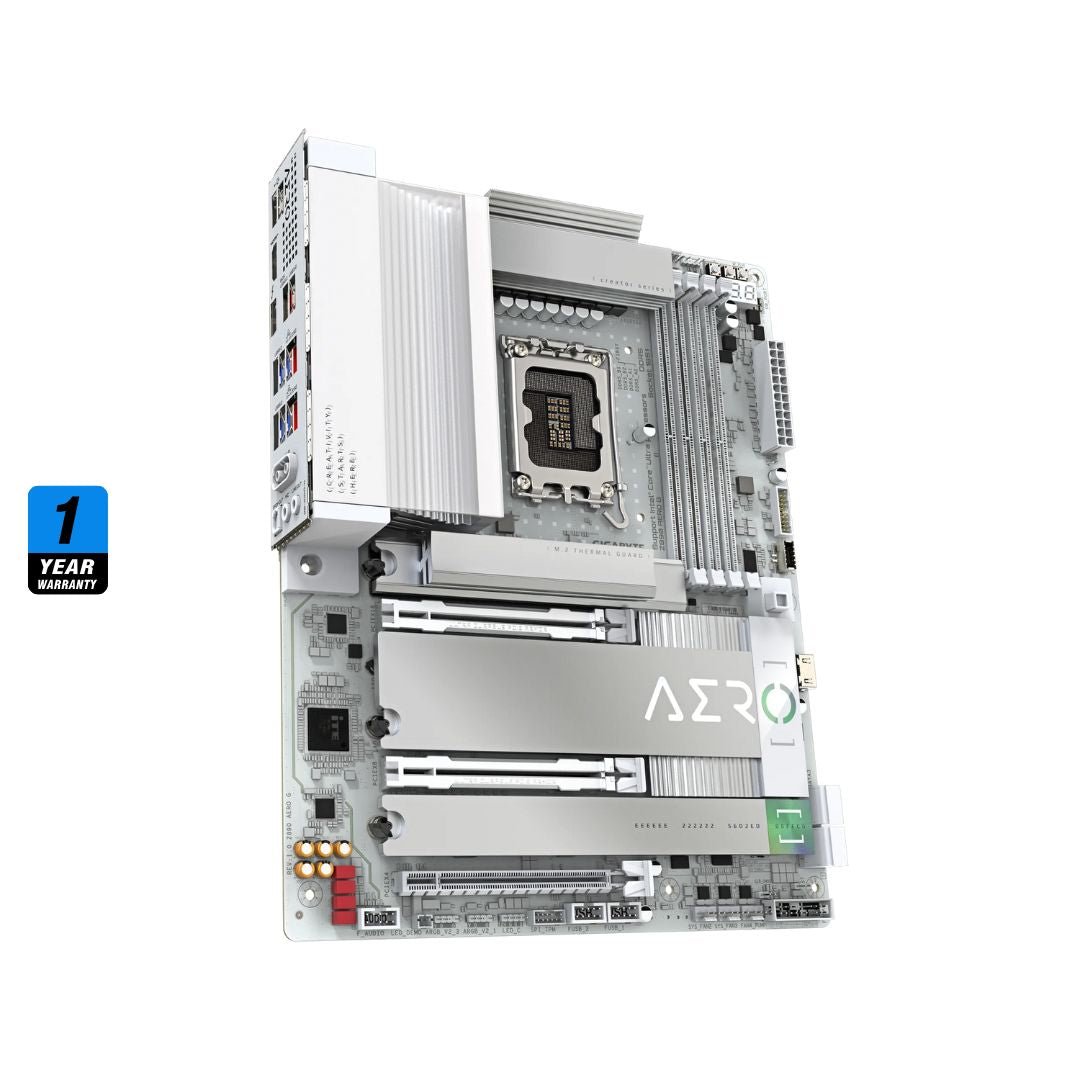

لوحة أم GIGABYTE Z890 AERO G

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: Intel Socket LGA 1851 (Supports Intel® Core™ Ultra المعالجs – Series 2)
• Chipset: Intel® Z890 Express Chipset
• عامل الشكل: ATX (12.0 in x 9.6 in / 30.5 cm x 24.4 cm)
• الذاكرة Support: DDR5 (Supports up to DDR5-8800+(OC) MT/s, Intel® XMP 3.0, CUDIMM / UDIMM support, لاn-ECC & ECC Un-buffered in non-ECC mode)
• الذاكرة Slots & Max Capacity: 4x DIMM slots, Up to 256 GB (Dual-Channel)
• PCIe Expansion Slots:
◦ 1x PCIe 5.0 x16 slot (PCIEX16; supports up to x16 mode with CPU; operates at x8 mode when PCIEX8 is populated)
◦ 1x PCIe 5.0 x16 slot (PCIEX8; supports up to x8 mode from CPU; shares bandwidth with PCIEX16)
◦ 1x PCIe 4.0 x16 slot (PCIEX4; supports x4 mode from Chipset)
• M.2 التخزين Slots:
◦ 1x M.2_1 slot (M2A_CPU, Key M, type 25110/22110/2580/2280 from CPU) — supports PCIe 5.0 x4/x2 mode
◦ 1x M.2_2 slot (M2B_CPU, Key M, type 25110/22110/2580/2280 from CPU) — supports PCIe 4.0 x4/x2 mode
◦ 1x M.2_3 slot (M2Q_SB, Key M, type 22110/2280 from Chipset) — supports PCIe 4.0 x4/x2 mode
◦ 1x M.2_4 slot (M2P_SB, Key M, type 2280 from Chipset) — supports PCIe 4.0 x4/x2 mode
◦ 1x M.2_5 slot (M2M_SB, Key M, type 2280 from Chipset) — supports PCIe 4.0 x4/x2 & SATA modes
• SATA المنافذ: 4x SATA 6Gb/s (Supports RAID 0, 1, 5, 10 for NVMe & SATA storage)

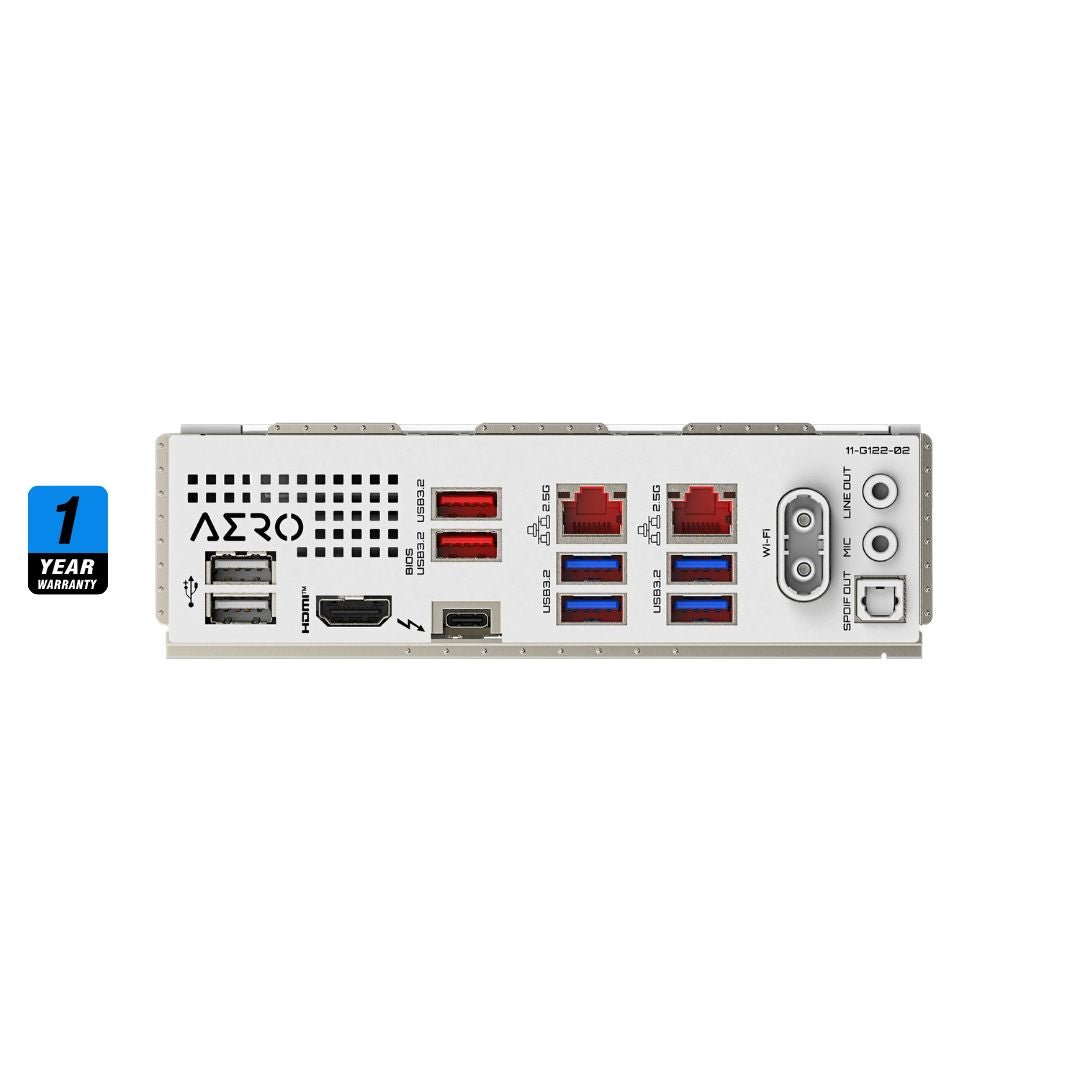

• Rear I/O USB & VisionLINK المنافذ:
◦ 1x Intel® Thunderbolt™ 4 / VisionLINK TB النوع-C® (supports 40Gbps, الشاشةPort 1.4a video output, up to 60W Power Delivery)
◦ 2x USB 3.2 Gen 2 النوع-A (10Gbps)
◦ 4x USB 3.2 Gen 1 النوع-A (5Gbps)
◦ 2x USB 2.0/1.1 النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 3.2 Gen 2×2 النوع-C® header (supports up to 20Gbps)
◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 النوع-A ports)
◦ 2x USB 2.0/1.1 headers (support 4 additional USB 2.0 ports)

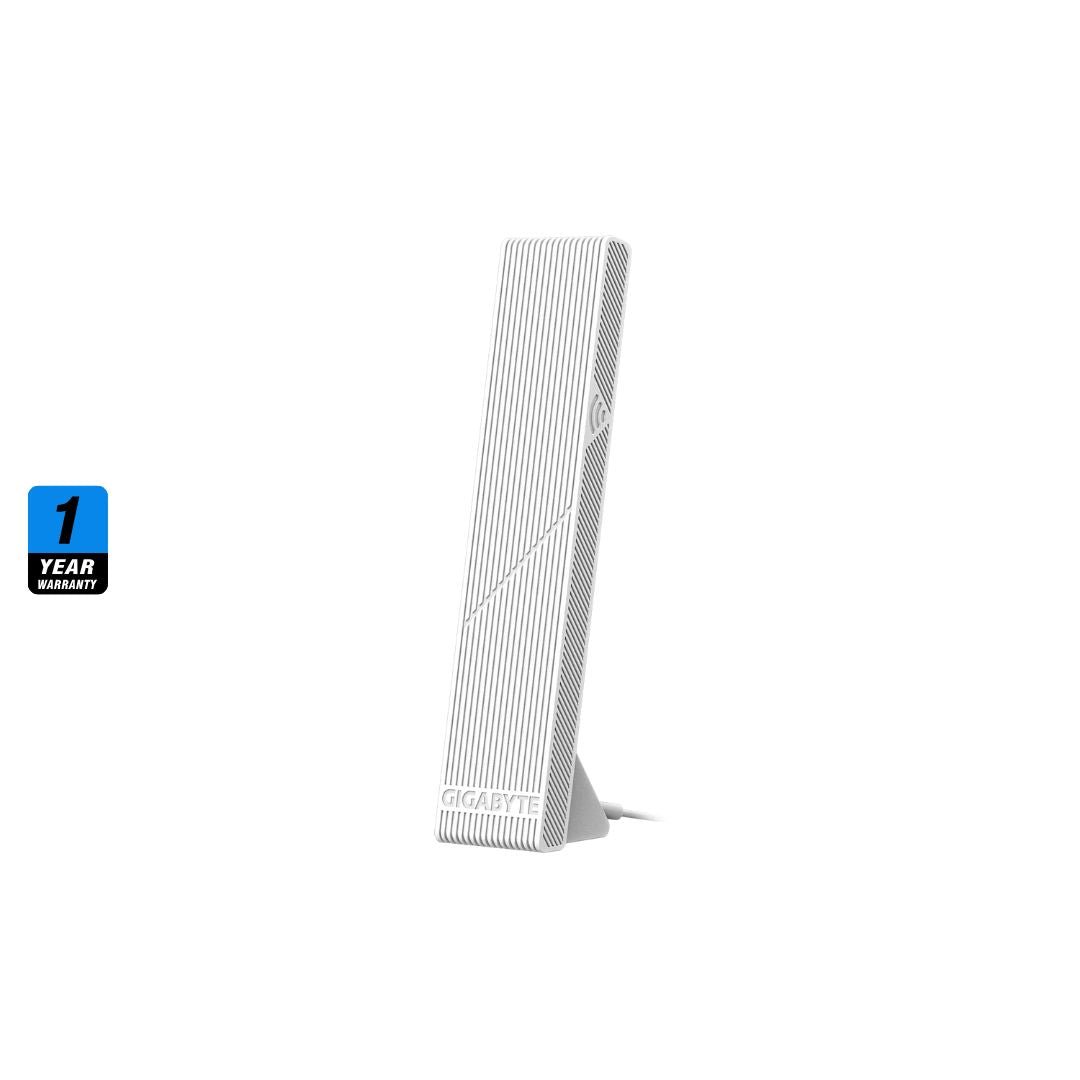

• Networking & الاتصال: Dual 2.5GbE LAN (2x Intel® 2.5GbE LAN chips), Intel® Wi-Fi 7 BE202 (802.11be, 160MHz channel bandwidth), Bluetooth 5.4
• الشاشة Outputs:
◦ 1x HDMI 2.1 (supports up to 4096×2160 @ 60Hz)
◦ 1x Thunderbolt™ 4 النوع-C® (supports الشاشةPort Alt Mode up to 5120×2880 @ 60Hz)
◦ 1x Internal Front HDMI port (المستشعر Panel Link, supports up to 1920×1080 @ 30Hz)
• Audio Codec: Realtek® ALC1220 CODEC High Definition Audio (7.1-Channel, WIMA Audiophile Grade Capacitors, S/PDIF output support)
• Power Delivery / Power Connectors: 16+1+2 Twin Digital VRM (80A Smart Power Stage), 1x 24-pin Main Power, 2x 8-pin ATX 12V Power
• RGB & Fan Headers:
◦ 1x 4-pin CPU Fan header
◦ 1x 4-pin CPU Fan/Water Cooling Pump header
◦ 3x 4-pin System Fan headers
◦ 1x 4-pin System Fan/Water Cooling Pump header
◦ 3x Addressable RGB Gen2 headers (ARGB 5V)
◦ 1x RGB LED strip header (12V)
• Special Features: VisionLINK TB (Thunderbolt™ 4 with 60W PD), PCIe EZ-Latch Plus, M.2 EZ-Latch Click & Plus, WIFI EZ-Plug, Q-Flash Plus button
