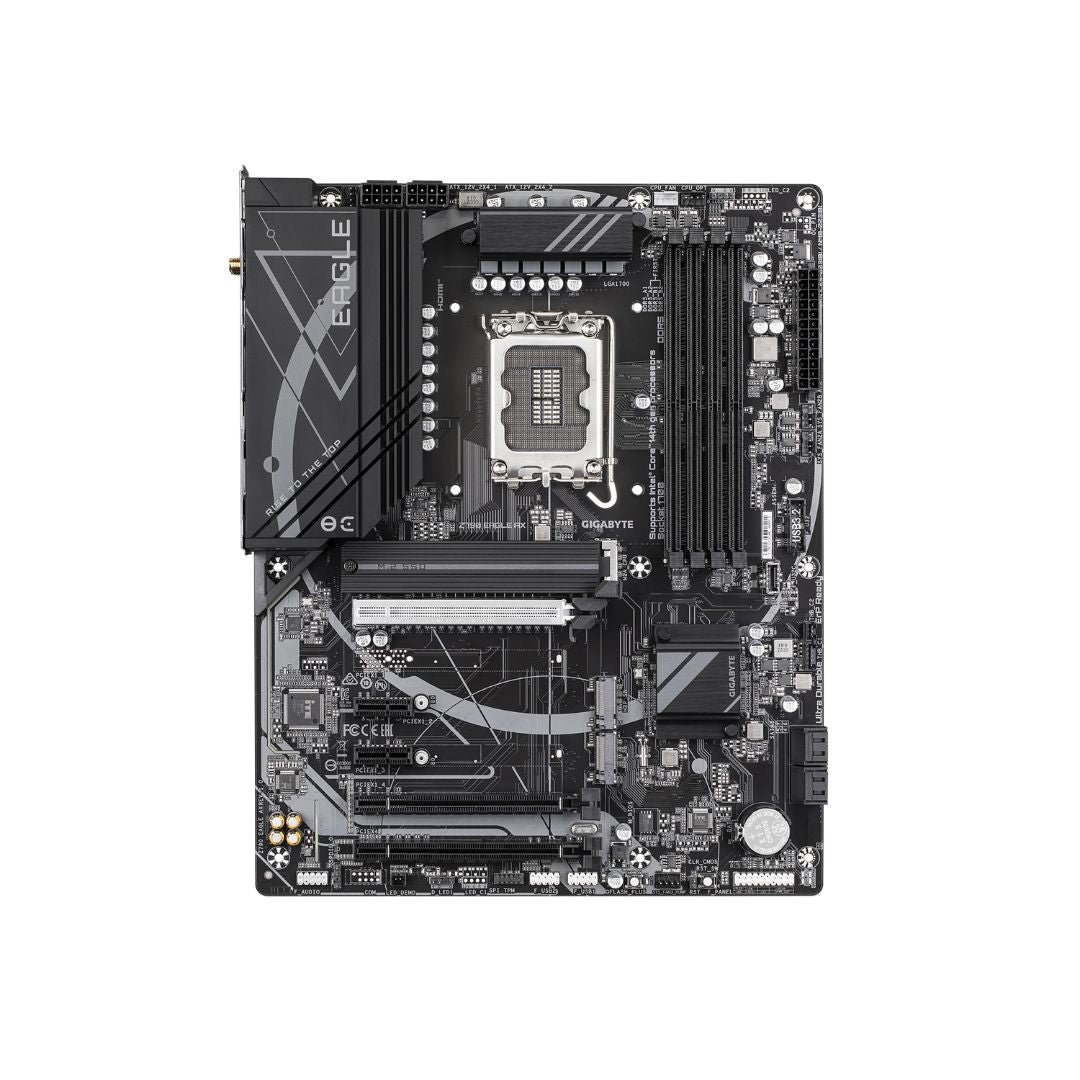

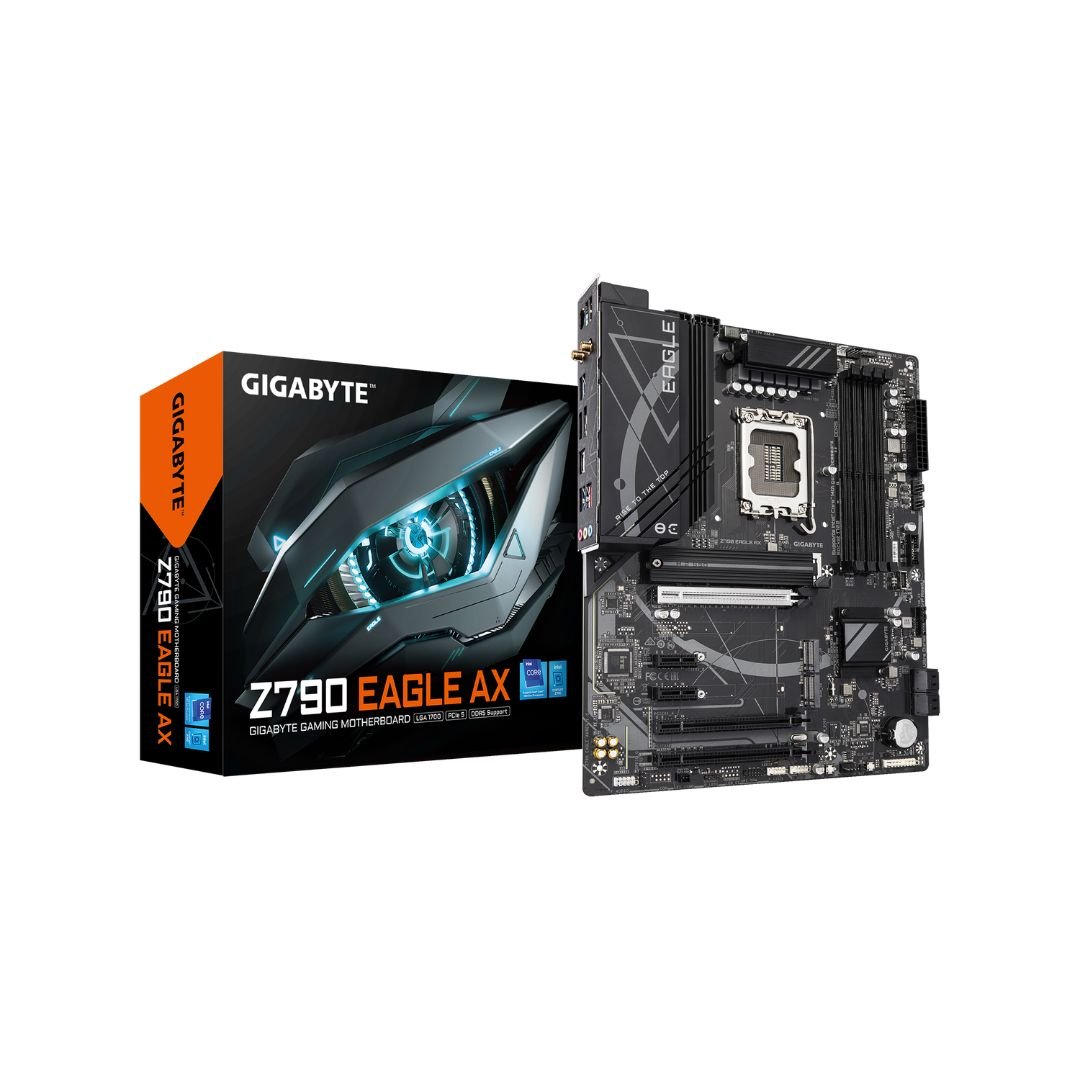

لوحة أم GIGABYTE Z790 EAGLE AX, WIFI 6E

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® المعالجs)
• Chipset: Intel® Z790 Express
• عامل الشكل: ATX (12.0 in x 9.6 in / 30.5 cm x 24.4 cm)
• الذاكرة Support: DDR5 (Supports DDR5 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 4800 MT/s, Dual-Channel, لاn-ECC Un-buffered, Intel® XMP 3.0)
• الذاكرة Slots & Max Capacity: 4x DIMM slots, Up to 256 GB (Supports single 64GB DIMMs)
• PCIe Expansion Slots:
◦ 1x PCIe 5.0 x16 slot (PCIEX16; supports x16 mode from CPU, PCIe EZ-Latch)
◦ 1x PCIe 4.0 x16 slot (PCIEX4_1; supports x4 mode from Z790 Chipset)
◦ 1x PCIe 3.0 x16 slot (PCIEX4_2; supports x4 mode from Z790 Chipset)
◦ 2x PCIe 3.0 x1 slots (PCIEX1_1 & PCIEX1_2; from Z790 Chipset)
• M.2 التخزين Slots:
◦ 1x M.2_1 slot (M2A_CPU, Key M, type 22110/2280 from CPU) — supports PCIe 4.0 x4/x2, includes M.2 Thermal Guard
◦ 1x M.2_2 slot (M2P_SB, Key M, type 22110/2280 from Z790 Chipset) — supports PCIe 4.0 x4/x2
◦ 1x M.2_3 slot (M2M_SB, Key M, type 22110/2280 from Z790 Chipset) — supports PCIe 4.0 x4/x2 & SATA modes
• SATA المنافذ: 4x SATA 6Gb/s (Supports RAID 0, 1, 5, 10)

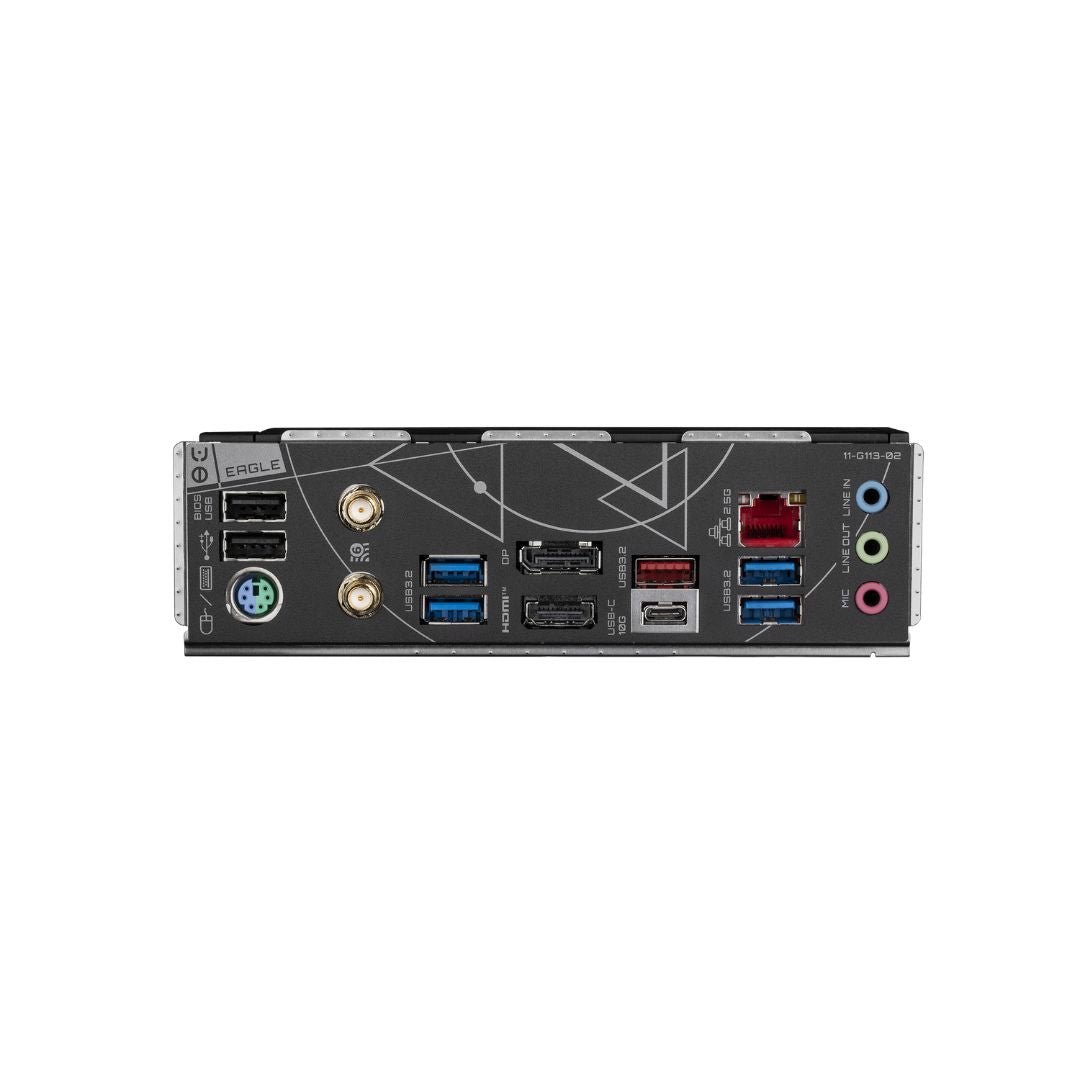

• Rear I/O USB المنافذ:
◦ 1x USB 3.2 Gen 2×2 النوع-C® (20Gbps)
◦ 1x USB 3.2 Gen 2 النوع-A (10Gbps)
◦ 4x USB 3.2 Gen 1 النوع-A (5Gbps)
◦ 2x USB 2.0/1.1 النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 3.2 Gen 1 النوع-C® header
◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 النوع-A ports)
◦ 2x USB 2.0/1.1 headers (support 4 additional USB 2.0 ports)
• Networking & الاتصال: Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps), Realtek® Wi-Fi 6E RTL8852CE (802.11ax 2×2, 6GHz), Bluetooth 5.3
• الشاشة Outputs:
◦ 1x الشاشةPort 1.2 (supports up to 4096×2304 @ 60Hz)
◦ 1x HDMI 2.0 (supports up to 4096×2160 @ 60Hz)
• Audio Codec: Realtek® Audio CODEC 7.1-Channel High Definition Audio (with High-End Audio Capacitors & Audio لاise Guard)
• Power Delivery / Power Connectors: Twin 12+1+1 Phases Digital VRM Solution (60A DrMOS), 1x 24-pin ATX Main Power connector, 2x 8-pin ATX 12V Power connectors
• RGB & Fan Headers:
◦ 1x 4-pin CPU Fan header
◦ 1x 4-pin Water Cooling CPU Fan header
◦ 3x 4-pin System Fan headers
◦ 1x 4-pin System Fan/Water Cooling Pump header
◦ 2x Addressable RGB Gen2 LED headers (ARGB 5V)
◦ 2x RGB LED strip headers (12V)
• Special Features: Advanced Thermal Design (Fully Covered MOSFET Heatsinks & M.2 Thermal Guard), PCIe EZ-Latch, Q-Flash Plus BIOS update button, Smart Fan 6 with Fan Stop, GIGABYTE Control Center (GCC) support, TPM header
