الوصف

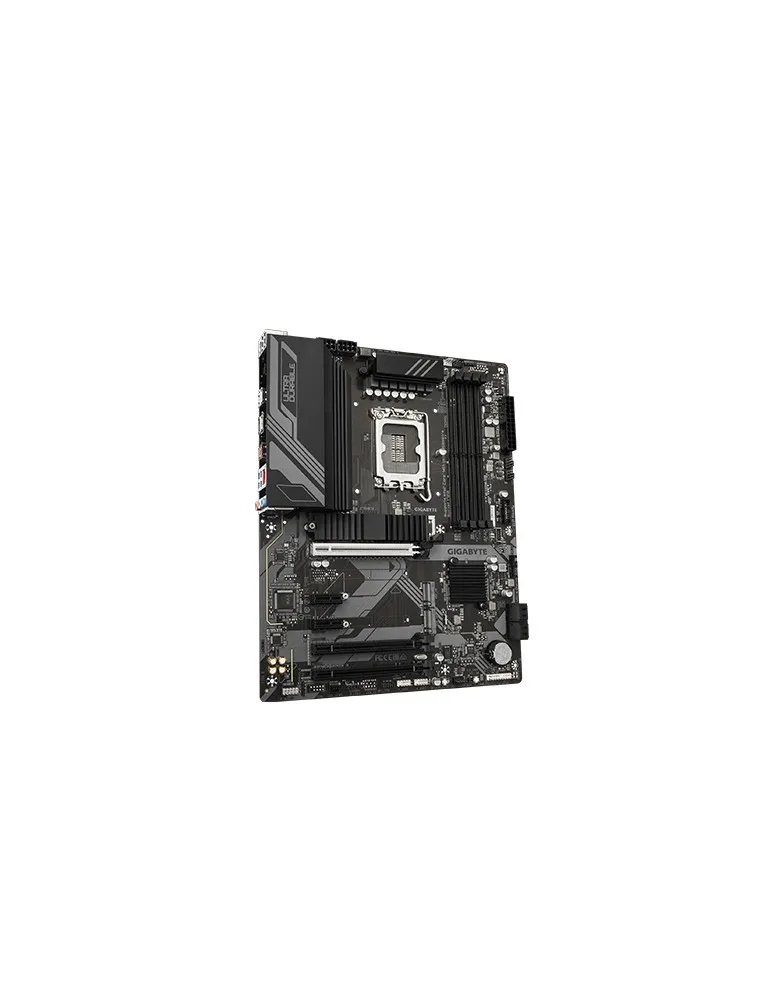

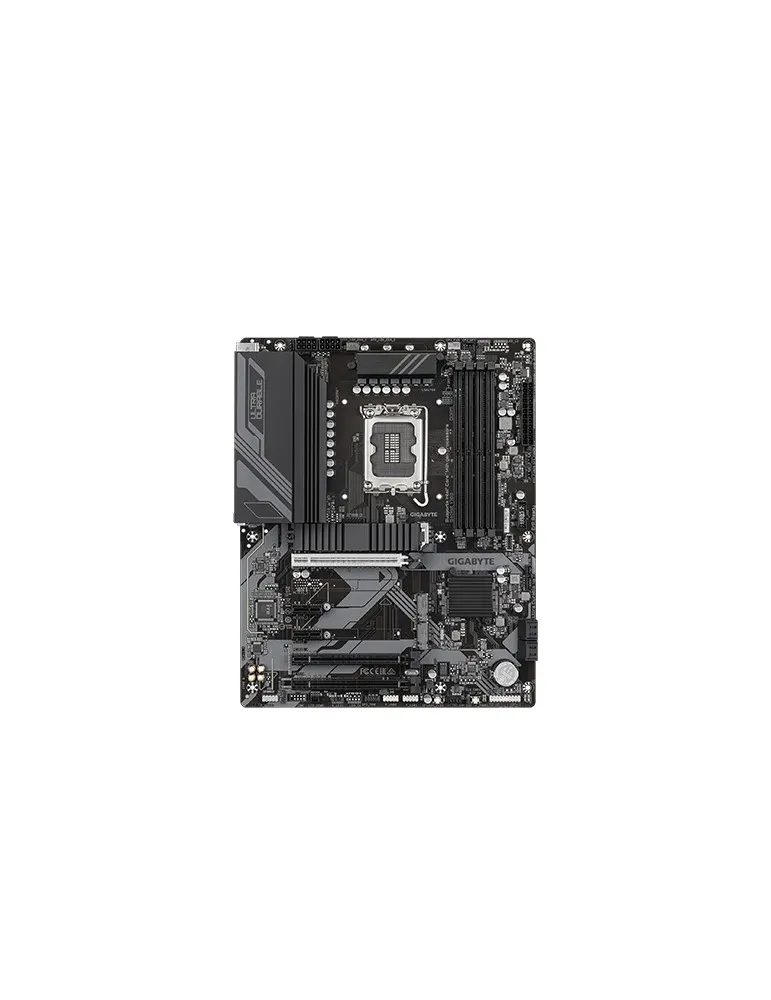

لوحة أم Gigabyte Z790 D DDR5
- Platform: Intel
- الشريحة: Intel Z790
- المقبس: LGA 1700
- Form factor: ATX (30.5 cm × 24.4 cm)
- Supported CPU generations: Intel Core 14th, 13th, and 12th Gen; Pentium Gold; Celeron
- نوع الذاكرة: DDR5
- الذاكرة slots: 4 X DIMM
- Maximum memory: 256 GB
- الذاكرة speed support: Up to DDR5-7600 MT/s (OC)
- فتحات التوسعة: 1 × PCIe 5.0 x16; 1 × PCIe 4.0 x16 (x4); 1 × PCIe 3.0 x16 (x1); 2 × PCIe 3.0 x1
- PCIe version: PCIe 5.0
- M.2 slots: 3 × M.2: 2 × PCIe 4.0 x4/x2; 1 × PCIe 4.0 x4/x2 + SATA
- SATA ports: 4 X SATA 6Gb/s
- Networking: Realtek 2.5GbE
- Rear I/O: 1 × USB 3.2 Gen 2 النوع-C, 1 × USB 3.2 Gen 2 النوع-A, 4 × USB 3.2 Gen 1, 2 × USB 2.0, الشاشةPort, HDMI, PS/2, 2.5GbE, 3 audio jacks
- Audio: Realtek 7.1-channel High Definition Audio CODEC
- BIOS flashback: Q-Flash Plus
- RGB/ARGB headers: 2 × addressable LED headers
- Power connectors: 1 × 24-pin ATX, 2 × 8-pin CPU
- المميزات: Smart Fan 6; GIGABYTE Control Center; onboard reset button
