الوصف

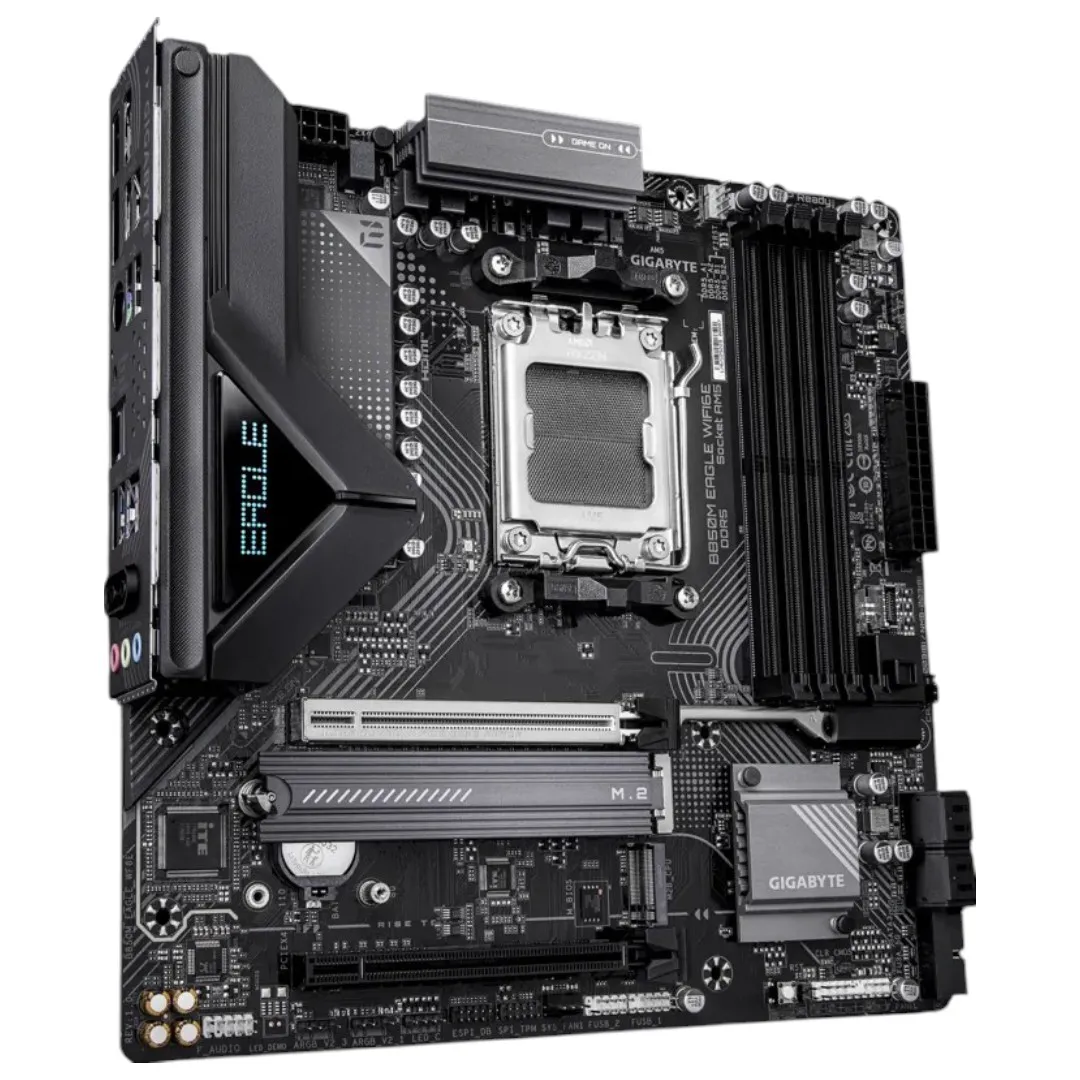

لوحة أم GIGABYTE B850M EAGLE WIFI6E
- Platform: AMD
- الشريحة: AMD B850
- المقبس: AM5
- Form factor: Micro ATX
- نوع الذاكرة: DDR5
- Maximum memory: 256GB
- M.2 slots: 2
- SATA ports: 4 (SATA 6Gb/s)
- Audio: Realtek High Definition Audio
- المميزات: :
- RAM Slots: 4 × DDR5 DIMM
- الذاكرة Architecture: Dual Channel
- الذاكرة Speed: Up to DDR5-8200 (OC)
- الذاكرة Profiles: AMD EXPO / Intel XMP
- Wi-Fi: Wi-Fi 6E
- لاسلكي Bands: 2.4GHz / 5GHz / 6GHz
- Bluetooth: Bluetooth 5.3
- CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series
- Primary Expansion Slot: 1 × PCIe x16
- Primary PCIe Version: PCIe 5.0 x16 with Ryzen 9000 / 7000 Series
- Secondary Expansion Slot: 1 × PCIe 3.0 x16 (x4 Mode)
- Primary M.2: PCIe 5.0 x4/x2 with Ryzen 9000 / 7000 Series
- Secondary M.2: PCIe 4.0 x4/x2
- RAID Support: RAID 0 / 1 / 5 / 10 for NVMe, RAID 0 / 1 / 10 for SATA
- LAN: Realtek 2.5GbE
- Audio Channels: Up to 7.1 Channel
- الشاشة Outputs: 1 × HDMI 2.1 / 2 × الشاشةPort 1.4
- Maximum HDMI الدقة: 4096 × 2160 @ 60Hz
- Maximum الشاشةPort الدقة: 3840 × 2160 @ 144Hz
- Multi-الشاشة Support: Up to 3 الشاشةs
- Rear USB-C: 1 × USB 3.2 Gen 2 النوع-C
- Rear USB-A: 1 × USB 3.2 Gen 2 / 2 × USB 3.2 Gen 1 / 4 × USB 2.0
- Front USB-C Header: USB 3.2 Gen 2
- RGB Headers: 3 × Addressable RGB Gen2 / 1 × RGB
- CPU Power Connector: 1 × 8-Pin ATX 12V
- Main Power Connector: 1 × 24-Pin ATX
- BIOS: 256Mbit AMI UEFI BIOS
- Special Features: Q-Flash / Q-Flash Plus / GIGABYTE Control Center
- الأبعاد: 24.4 × 24.4 cm
- SATA المنافذ: 4 × SATA 6Gb/s
