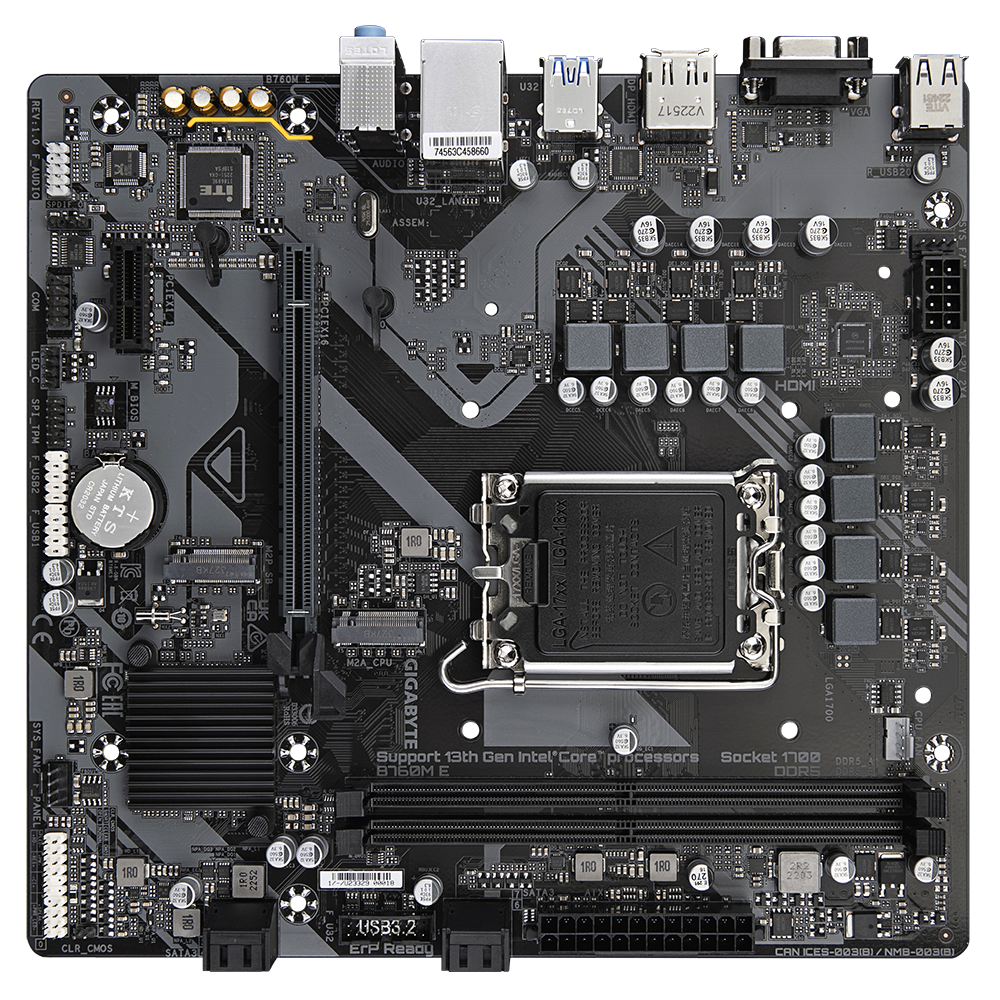

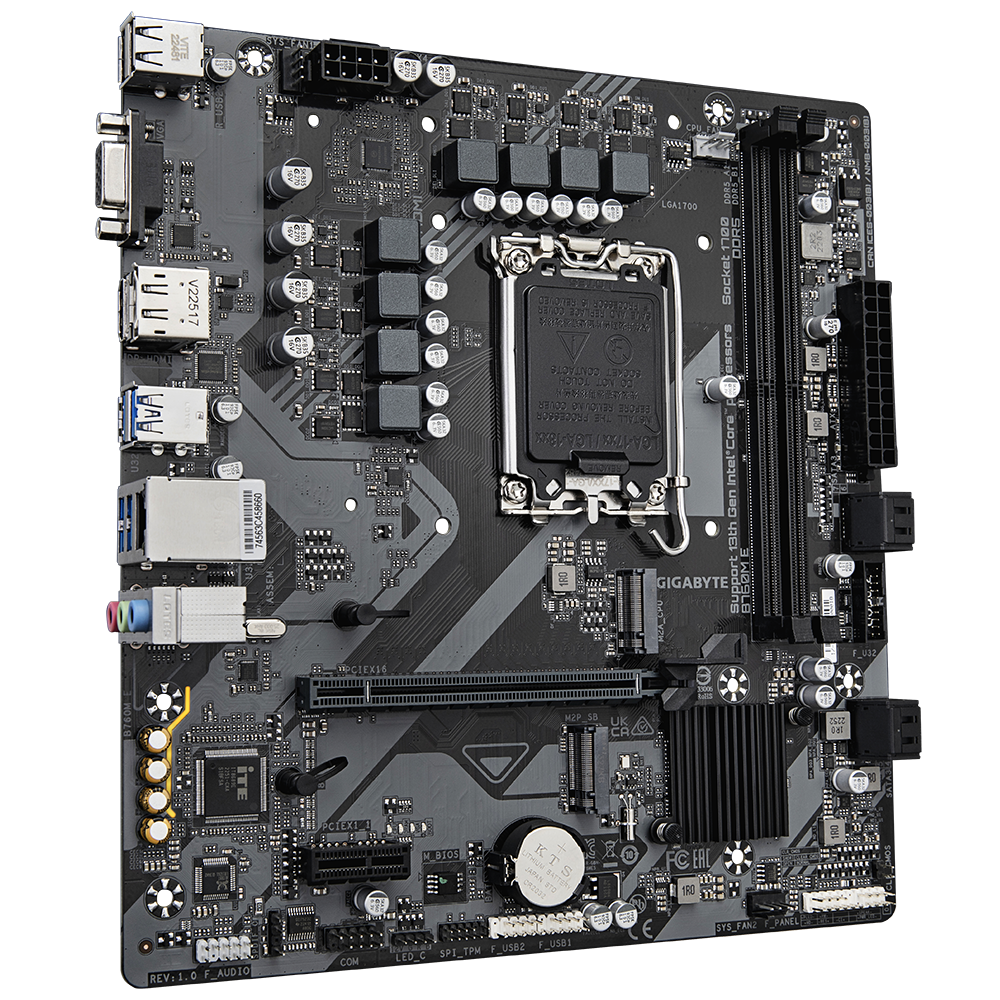

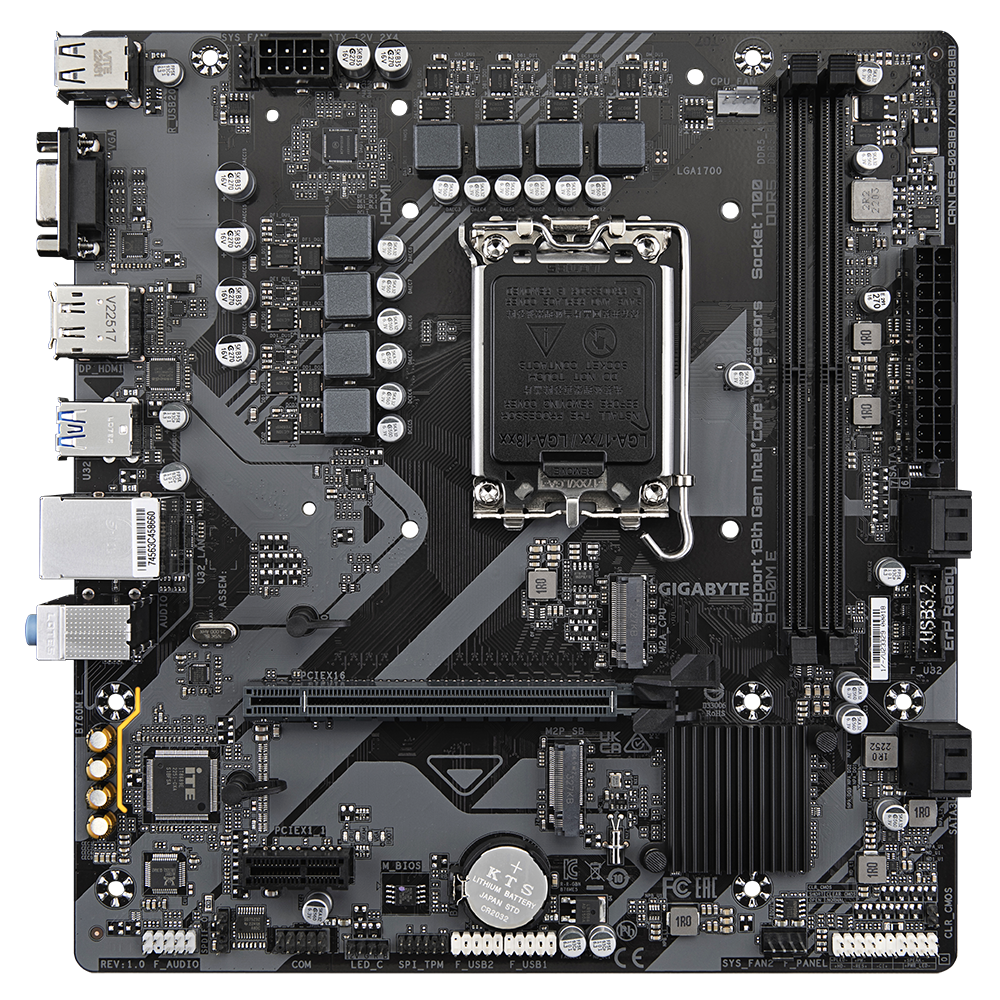

لوحة أم GIGABYTE B760M-E (rev. 1.0) – DDR5 Micro-ATX Motherboard, 13th/12th Gen Intel Support, Dual PCIe 4.0 M.2, Smart مروحة 6
من GIGABYTE، ضمن قسم اللوحات الأم. المواصفات التالية من بيانات المنتج لدى المصدر.
- العلامة التجاريةGIGABYTE
- التصنيفاللوحات الأم
- المقبسLGA1700
- الشريحةB760M
تفاصيل المنتج من المصدر
- Supports 12th, 13th, and 14th Gen Intel® Core™ processors (LGA 1700 socket)
- 6+1+1-phase hybrid digital VRM design with premium components for stable power delivery
- Dual-channel DDR5 memory (2 × DIMM slots) with XMP support and overclocking up to DDR5-7200+
- One PCIe 4.0 ×16 slot with EZ-Latch quick-release latch for easy graphics card installation
- Two PCIe 4.0 ×4 M.2 slots for high-speed NVMe storage
- 4 × SATA 6 Gb/s ports for legacy storage devices
- Smart Fan 6 thermal control: multiple temperature sensors, hybrid fan headers, fan-stop supported
- Realtek Gigabit Ethernet with bandwidth management

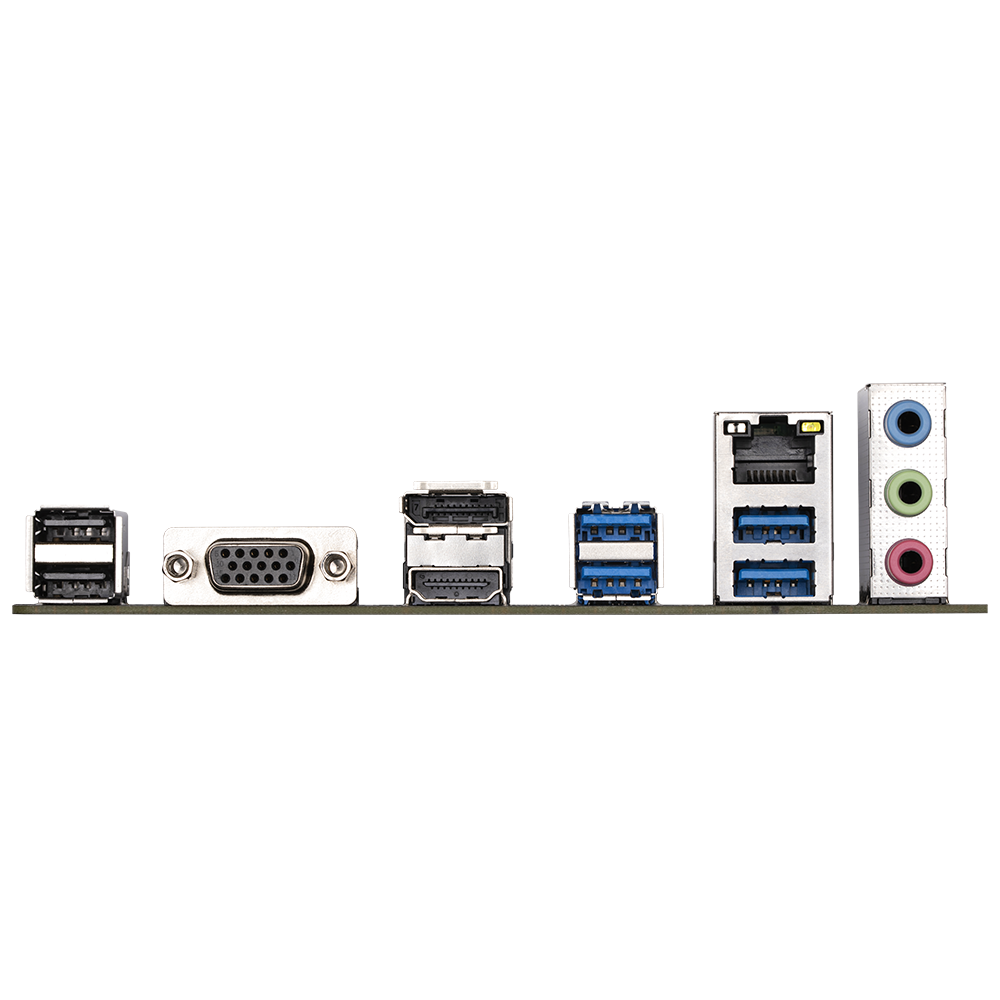

- Video outputs: D-Sub, HDMI, الشاشةPort for integrated graphics support
- 8-channel HD audio with لاise Guard and high-end audio capacitors
- RGB Fusion header for customizable lighting
- GIGABYTE Ultra Durable build with low-impedance PCB for PCIe 4.0 signal integrity
