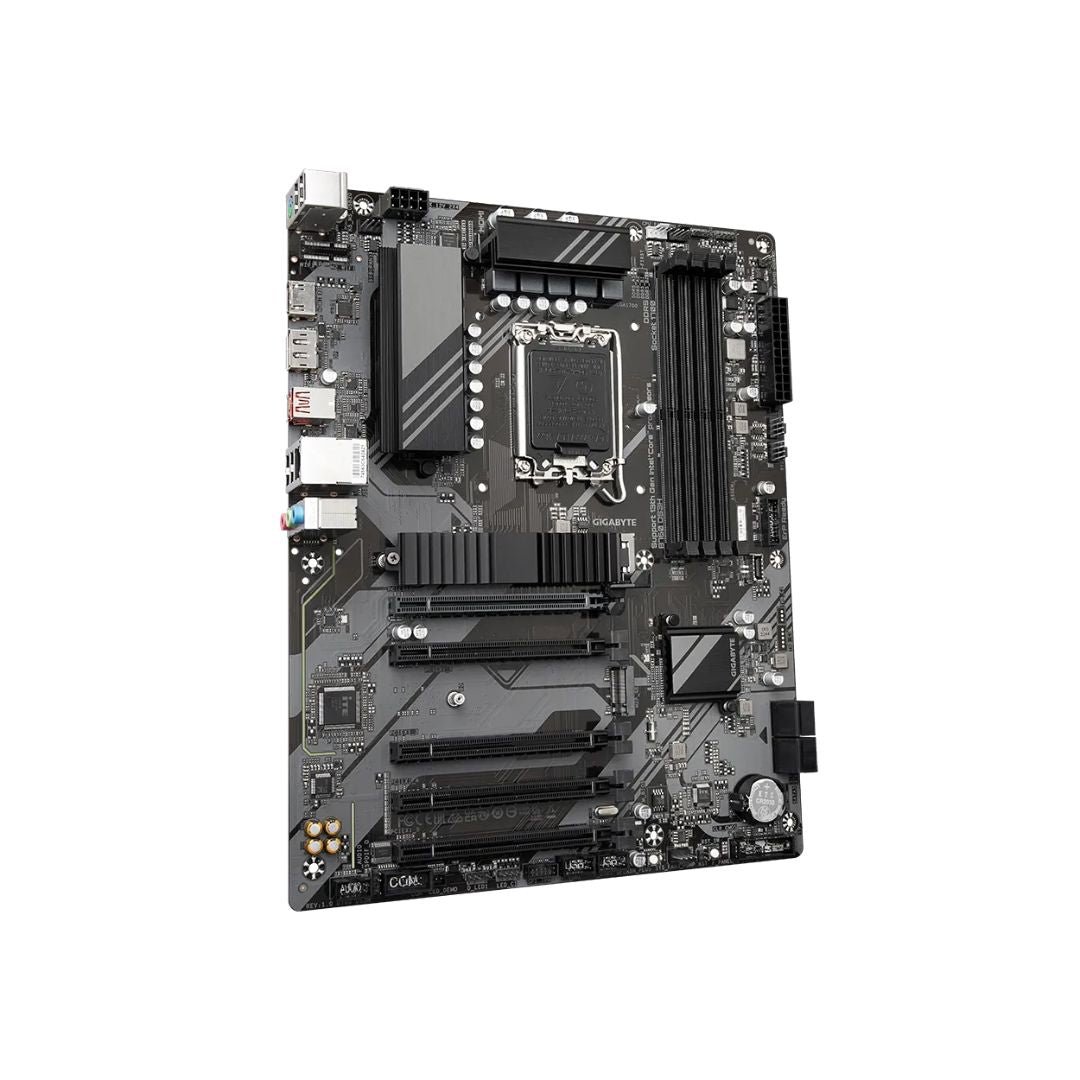

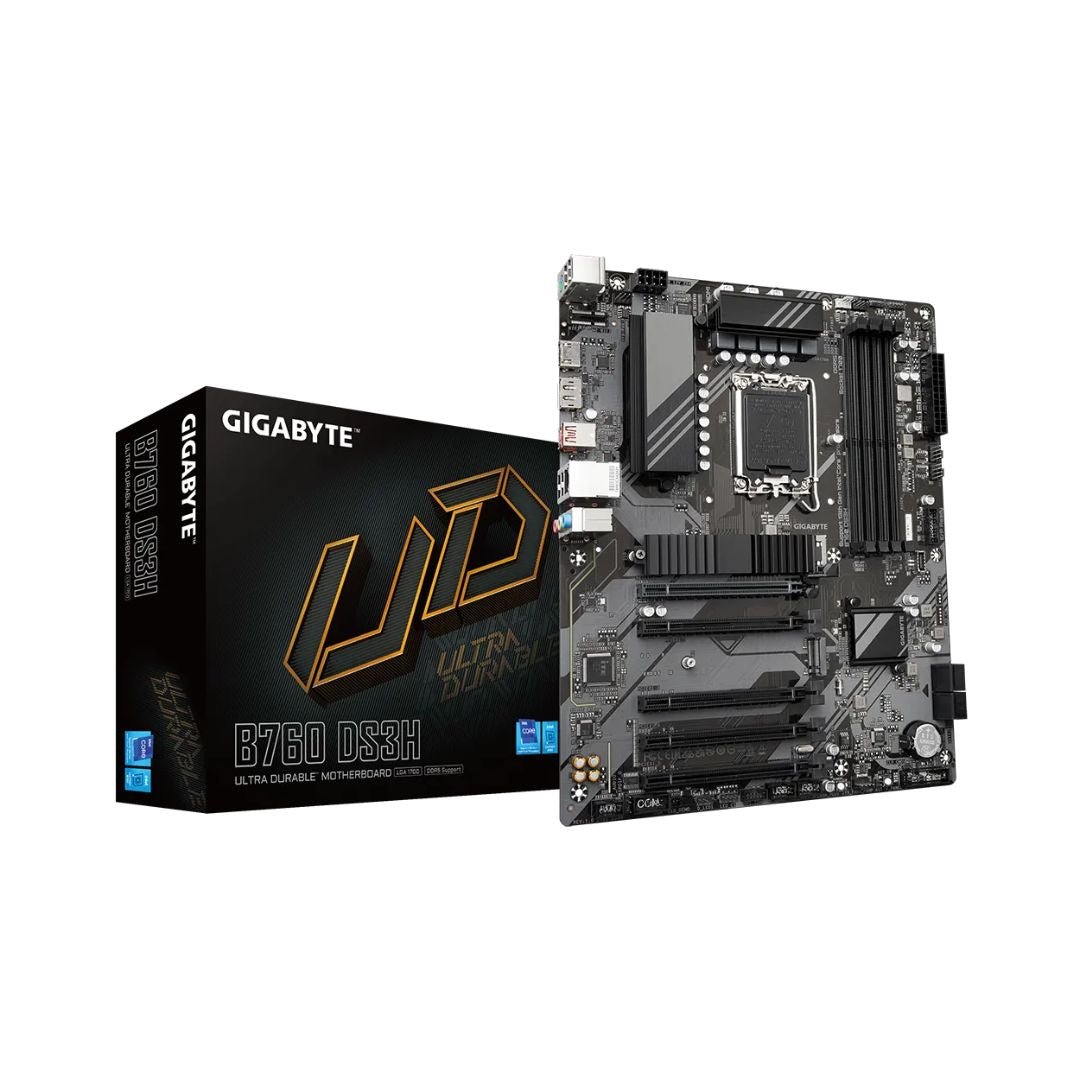

لوحة أم GIGABYTE B760 DS3H D5

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® المعالجs)
• Chipset: Intel® B760 Express
• عامل الشكل: ATX (12.0 in x 9.6 in / 30.5 cm x 24.4 cm)
• الذاكرة Support: DDR5 (Supports DDR5 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5200 / 4800 MT/s, Dual-Channel, لاn-ECC Un-buffered, Intel® XMP 3.0)
• الذاكرة Slots & Max Capacity: 4x DIMM slots, Up to 256 GB (Supports single 64GB DIMMs)
• PCIe Expansion Slots:
◦ 1x PCIe 4.0 x16 slot (PCIEX16; supports x16 mode from CPU, PCIe EZ-Latch)
◦ 4x PCIe 3.0 x1 slots (PCIEX1_1 through PCIEX1_4; from B760 Chipset)
• M.2 التخزين Slots:
◦ 1x M.2_1 slot (M2A_CPU, Key M, type 22110/2280 from CPU) — supports PCIe 4.0 x4/x2
◦ 1x M.2_2 slot (M2P_SB, Key M, type 2280 from B760 Chipset) — supports PCIe 4.0 x4/x2
• SATA المنافذ: 4x SATA 6Gb/s (Supports RAID 0, 1, 5, 10)
• Rear I/O USB المنافذ:
◦ 1x USB 3.2 Gen 2 النوع-C® (10Gbps)
◦ 1x USB 3.2 Gen 1 النوع-A (5Gbps)
◦ 4x USB 2.0/1.1 النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 3.2 Gen 1 النوع-C® header
◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 النوع-A ports)
◦ 2x USB 2.0/1.1 headers (support 4 additional USB 2.0 ports)
• Networking & الاتصال: Realtek® GbE LAN (1 Gbps/100 Mbps) (لا onboard Wi-Fi / Bluetooth)
• الشاشة Outputs:
◦ 1x الشاشةPort 1.2 (supports up to 4096×2304 @ 60Hz)
◦ 1x HDMI 2.1 (supports up to 4096×2160 @ 60Hz)
• Audio Codec: Realtek® Audio CODEC 7.1-Channel High Definition Audio (with High-End Audio Capacitors & Audio لاise Guard)
• Power Delivery / Power Connectors: Hybrid 8+1+1 Phases Digital VRM Solution, 1x 24-pin ATX Main Power connector, 1x 8-pin ATX 12V Power connector
• RGB & Fan Headers:
◦ 1x 4-pin CPU Fan header
◦ 1x 4-pin Water Cooling CPU Fan header
◦ 3x 4-pin System Fan headers
◦ 1x 4-pin System Fan/Water Cooling Pump header
◦ 2x Addressable RGB Gen2 LED headers (ARGB 5V)
◦ 2x RGB LED strip headers (12V)
• Special Features: Q-Flash Plus BIOS update button, PCIe EZ-Latch, Smart Fan 6 with Fan Stop, GIGABYTE Control Center (GCC) support, TPM header
