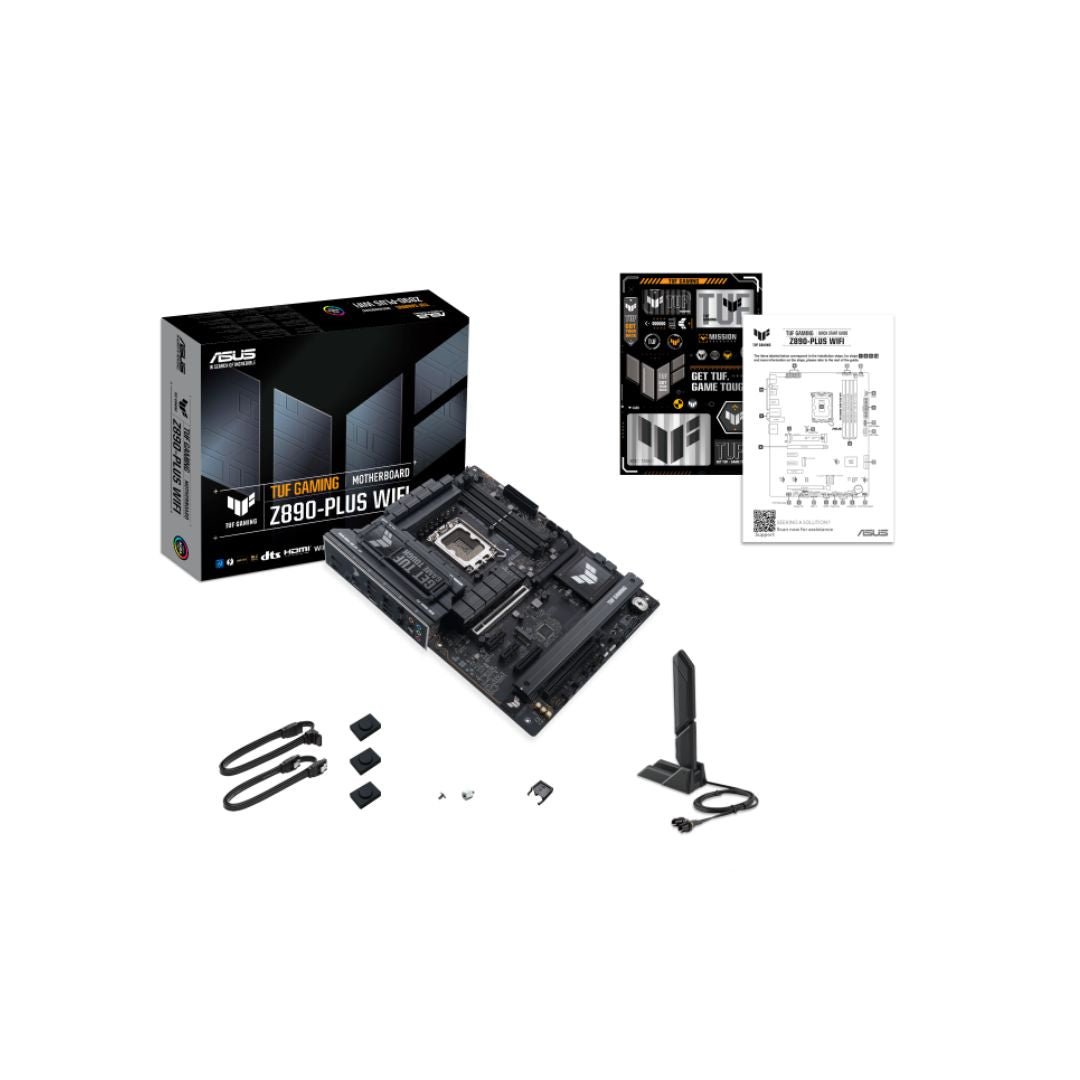

لوحة أم ASUS TUF GAMING Z890-PLUS WIFI

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1851 (Supports Intel® Core™ Ultra المعالجs – Series 2)
• Chipset: Intel® Z890
• عامل الشكل: ATX (12.0 in x 9.6 in / 30.5 cm x 24.4 cm)
• الذاكرة Support: DDR5 (Supports up to DDR5 9066+(OC) MT/s, CUDIMM & UDIMM support, Dual-Channel, لاn-ECC Un-buffered, Intel® XMP 3.0, AEMP III)
• الذاكرة Slots & Max Capacity: 4x DIMM slots, Up to 256 GB
• PCIe Expansion Slots:
◦ 1x PCIe 5.0 x16 slot (supports x16 mode from CPU, PCIe Slot Q-Release & SafeSlot)
◦ 1x PCIe 4.0 x16 slot (supports x4 mode from Z890 Chipset)
◦ 1x PCIe 4.0 x4 slot (from Z890 Chipset)
◦ 2x PCIe 4.0 x1 slots (from Z890 Chipset)
• M.2 التخزين Slots:
◦ 1x M.2_1 slot (Key M, type 2242/2260/2280 from CPU) — supports PCIe 5.0 x4 mode
◦ 1x M.2_2 slot (Key M, type 2280 from CPU) — supports PCIe 4.0 x4 mode
◦ 1x M.2_3 slot (Key M, type 2280/22110 from Z890 Chipset) — supports PCIe 4.0 x4 mode
◦ 1x M.2_4 slot (Key M, type 2242/2260/2280 from Z890 Chipset) — supports PCIe 4.0 x4 & SATA 6Gb/s modes
• SATA المنافذ: 4x SATA 6Gb/s (Supports Intel® Rapid التخزين Technology RAID 0, 1, 5, 10)
• Rear I/O USB المنافذ:
◦ 1x Intel® Thunderbolt™ 4 النوع-C® (supports الشاشةPort & Thunderbolt™ video output)
◦ 1x USB 20Gbps النوع-C® (with الشاشةPort Alt mode)
◦ 2x USB 10Gbps النوع-A
◦ 4x USB 5Gbps النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 20Gbps connector (supports USB النوع-C® with 30W Fast Charging / Power Delivery)
◦ 1x USB 5Gbps header (supports 2 additional USB 5Gbps النوع-A ports)
◦ 2x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Networking & الاتصال: 1x Intel® 2.5Gb Ethernet (TUF LANGuard), Wi-Fi 7 (802.11be 2×2, 160MHz bandwidth, ASUS WiFi Q-Antenna), Bluetooth® 5.4
• الشاشة Outputs:
◦ 1x الشاشةPort 1.4 (supports up to 4K @ 60Hz)
◦ 1x HDMI 2.1 (supports up to 4K @ 60Hz)
◦ 1x Intel® Thunderbolt™ 4 النوع-C® (supports up to 8K @ 60Hz with DSC)
◦ 1x USB 20Gbps النوع-C® (supports الشاشةPort up to 4K @ 60Hz)
• Audio Codec: Realtek® ALC1220P 7.1 Surround Sound High Definition Audio CODEC (with Optical S/PDIF output)
• Power Delivery / Power Connectors: 16+1+2+1 80A DrMOS Power Stages, 1x 24-pin ATX Main Power connector, 2x 8-pin ATX 12V CPU Power connectors
• RGB & Fan Headers:
◦ 1x 4-pin CPU Fan header
◦ 1x 4-pin CPU OPT Fan header
◦ 1x 4-pin AIO Pump header
◦ 4x 4-pin Chassis Fan headers (7 total 4-pin fan headers)
◦ 3x Addressable Gen 2 headers (ARGB 5V)
• Special Features: PCIe Slot Q-Release, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, WiFi Q-Antenna, BIOS FlashBack™ button, Q-LED diagnostic LEDs, TUF Protection
