الوصف

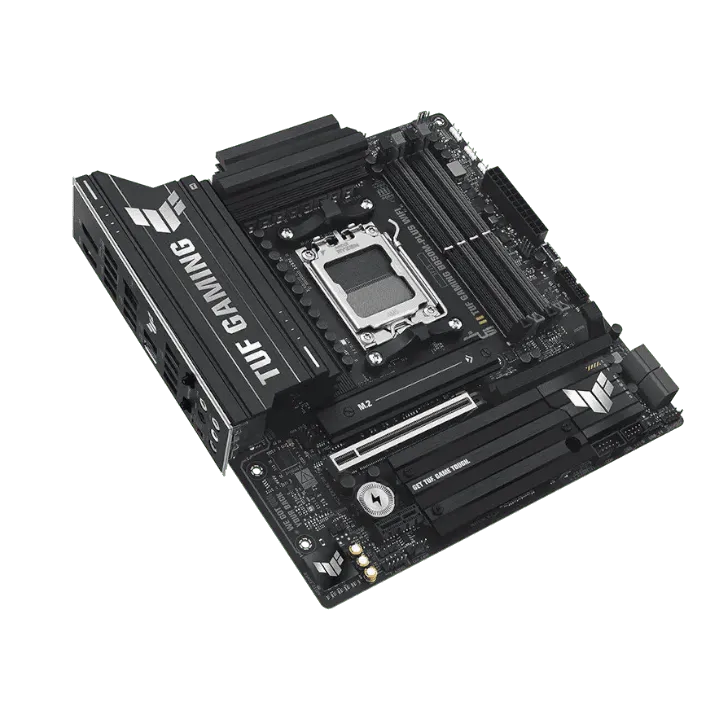

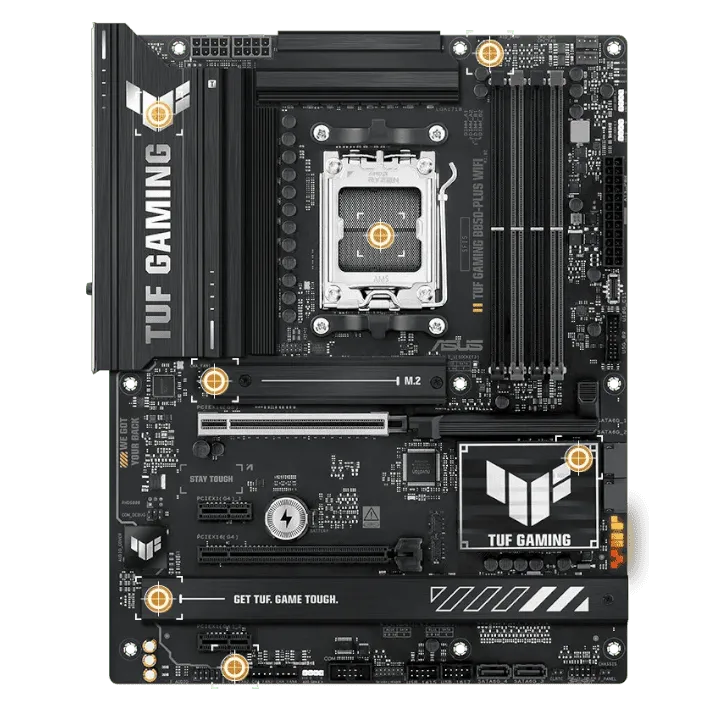

لوحة أم ASUS TUF GAMING B850M-PLUS
- Platform: AMD
- الشريحة: AMD B850
- المقبس: AM5
- Form factor: Micro-ATX (24.4 cm × 24.4 cm)
- Supported CPU generations: AMD Ryzen 9000, 8000, and 7000 Series
- نوع الذاكرة: DDR5
- الذاكرة slots: 4 X DIMM
- Maximum memory: 256 GB
- الذاكرة speed support: Up to DDR5-8000+ MT/s (OC)
- فتحات التوسعة: 1 × PCIe 5.0 x16 (Ryzen 9000/7000) or PCIe 4.0 x16 (x8/x4 with Ryzen 8000); 1 × PCIe 4.0 x1
- PCIe version: PCIe 5.0
- M.2 slots: 3 × M.2 (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4; CPU-dependent)
- SATA ports: 4 X SATA 6Gb/s
- Networking: Realtek 2.5GbE

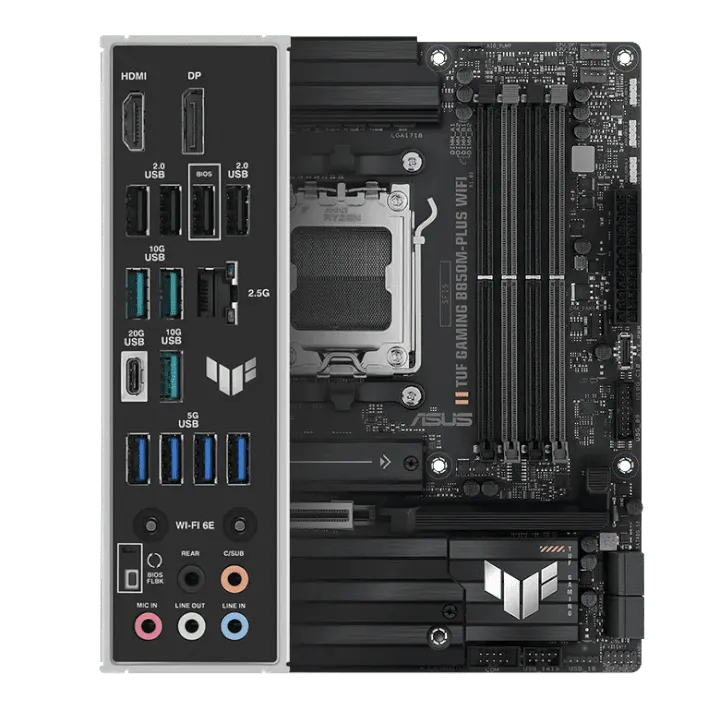

- Rear I/O: 1 × USB 20Gbps النوع-C, 3 × USB 10Gbps النوع-A, 4 × USB 5Gbps النوع-A, 4 × USB 2.0 النوع-A, الشاشةPort, HDMI, 2.5GbE, 5 audio jacks, BIOS FlashBack button
- Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- BIOS flashback: BIOS FlashBack
- RGB/ARGB headers: 3 × Addressable Gen 2 headers
- Power connectors: 1 × 24-pin ATX, 2 × 8-pin CPU
- المميزات: PCIe Slot Q-Release; M.2 Q-Latch; Q-LED; pre-mounted I/O shield
