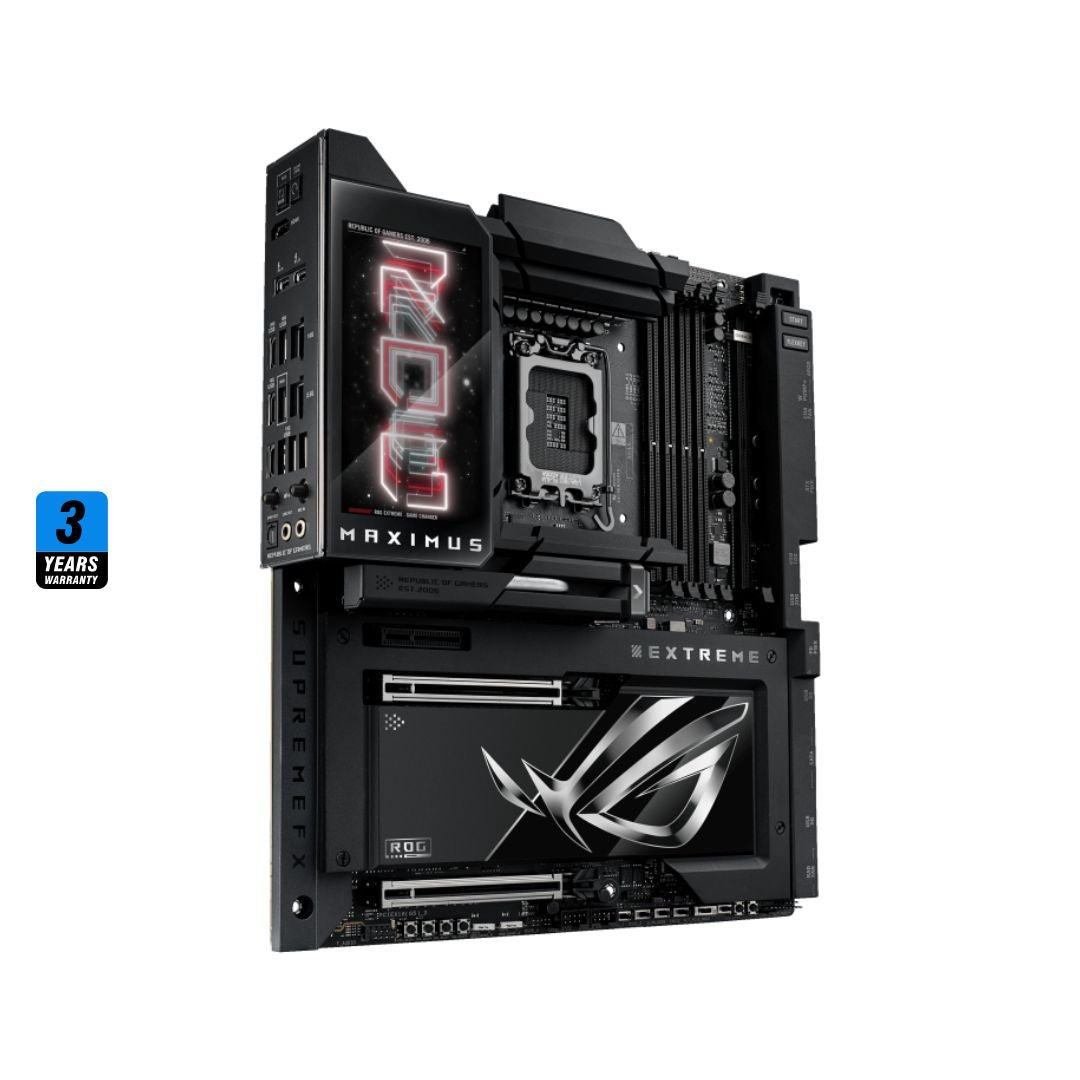

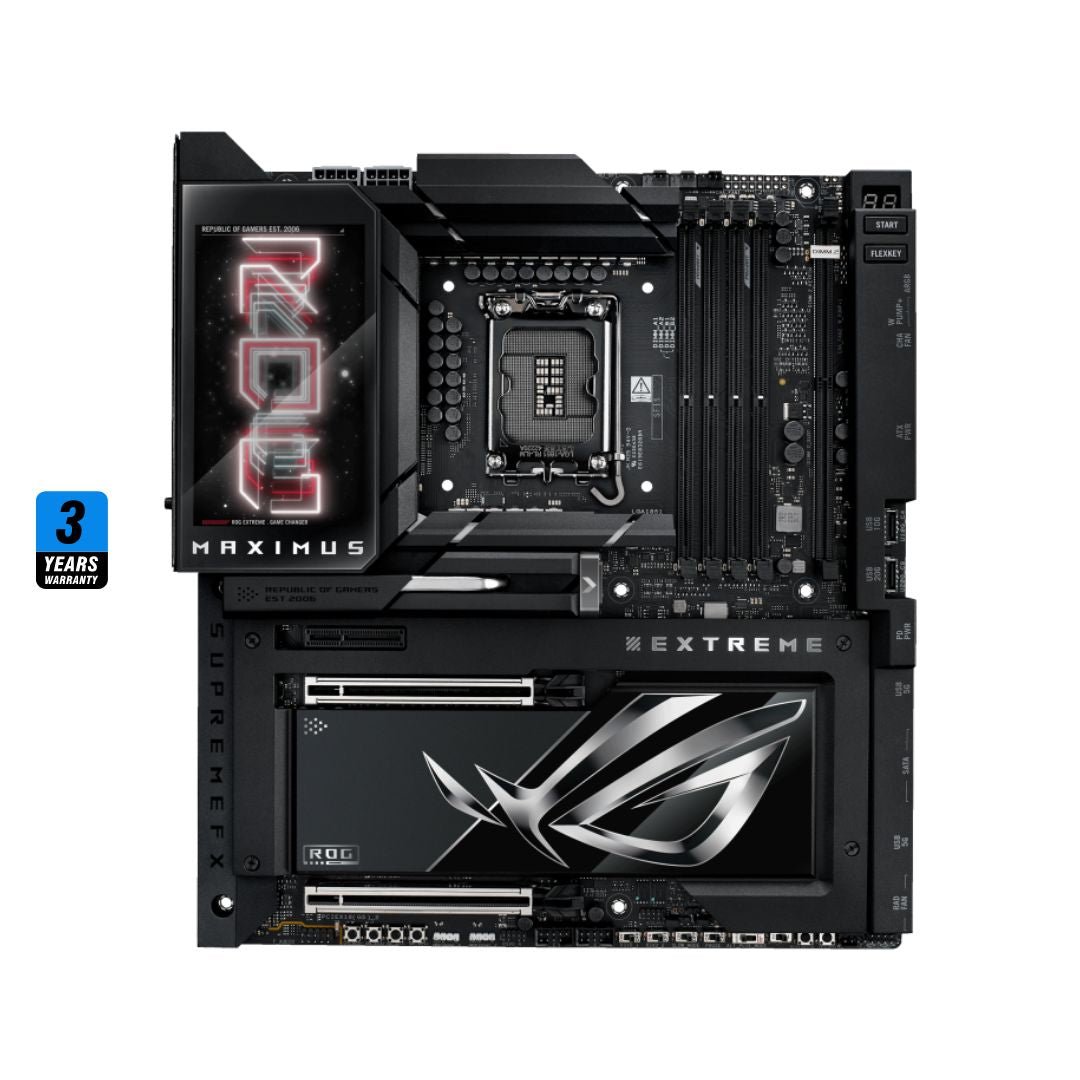

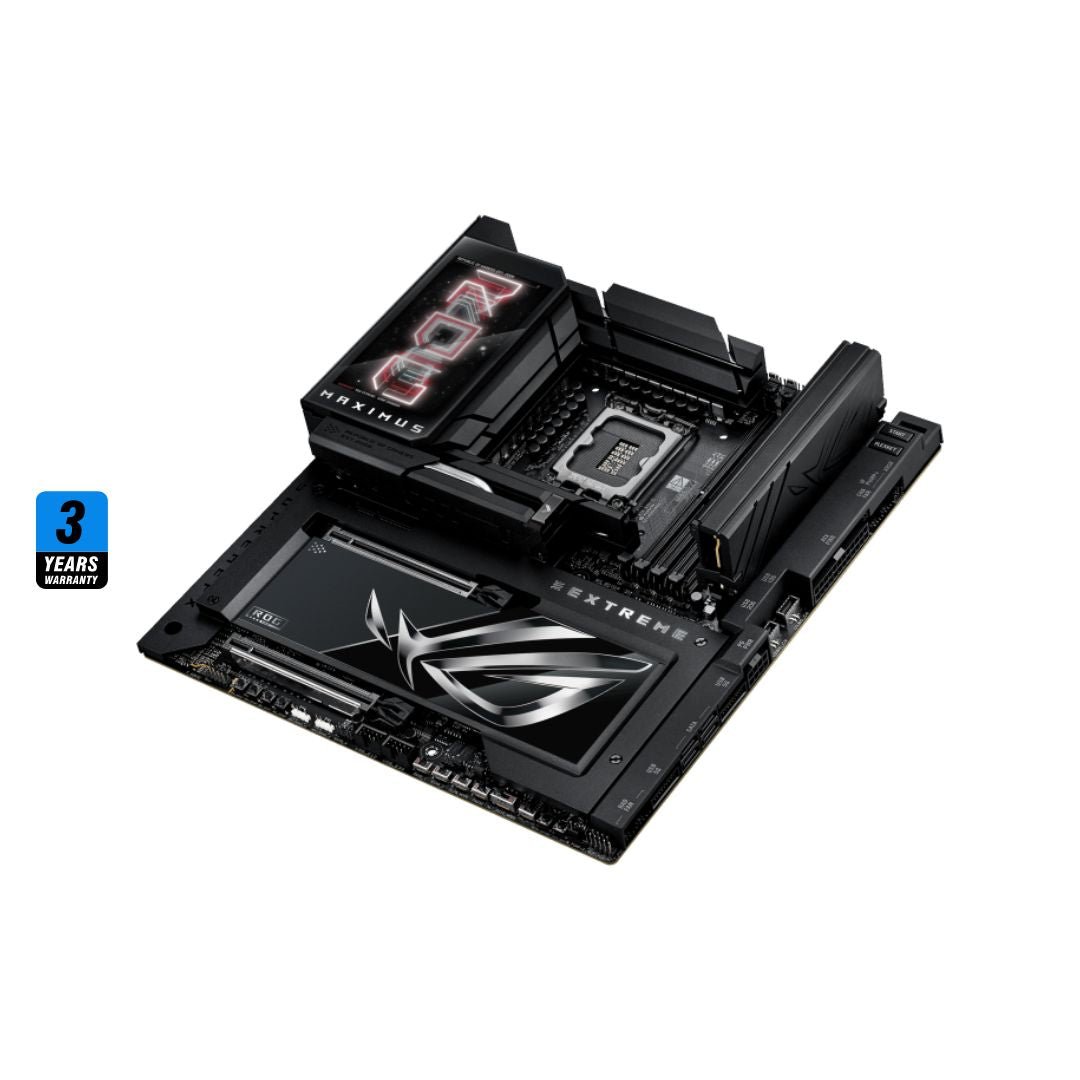

لوحة أم ASUS ROG MAXIMUS Z890 EXTREME

تفاصيل المنتج من المصدر

Motherboard Specification

• Socket / CPU Support: Intel Socket LGA 1851 (Supports Intel® Core™ Ultra المعالجs – Series 2)
• Chipset: Intel® Z890
• عامل الشكل: E-ATX (12.0 in x 10.9 in / 30.5 cm x 27.7 cm)
• الذاكرة Support: DDR5 (Supports up to DDR5-9200+(OC) MT/s, Intel® XMP 3.0, CUDIMM / UDIMM support, NitroPath DRAM Technology, Dual-Channel, لاn-ECC Un-buffered)
• الذاكرة Slots & Max Capacity: 4x DIMM slots, Up to 256 GB
• PCIe Expansion Slots:
◦ 2x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes from CPU; shares bandwidth with M.2_3 & M.2_4)
◦ 1x PCIe 4.0 x4 slot (from Chipset)
• M.2 التخزين Slots:
◦ 1x M.2_1 slot (Key M, type 2242/2260/2280/22110 from CPU) — supports up to PCIe 5.0 x4
◦ 1x M.2_2 slot (Key M, type 2242/2260/2280 from CPU) — supports up to PCIe 4.0 x4
◦ 1x M.2_3 slot (Key M, type 2242/2260/2280/22110 from CPU) — supports up to PCIe 5.0 x4
◦ 1x M.2_4 slot (Key M, type 2242/2260/2280 from CPU) — supports up to PCIe 5.0 x4
◦ 2x M.2 slots via ROG Q-DIMM.2 card (DIMM.2_1 & DIMM.2_2, type 2230/2242/2260/2280/22110 from Chipset) — supports up to PCIe 4.0 x4
• SATA المنافذ: 4x SATA 6Gb/s (Supports RAID 0, 1, 5, 10 for SATA & M.2 NVMe)
• Rear I/O USB & Thunderbolt المنافذ:
◦ 2x Intel® Thunderbolt™ 5 النوع-C® (supports up to 80Gbps / 120Gbps Bandwidth Boost, الشاشةPort 2.1 output)
◦ 1x USB 20Gbps النوع-C®
◦ 2x USB 10Gbps النوع-C®
◦ 5x USB 10Gbps النوع-A
• Internal Front Panel USB Headers:
◦ 1x USB 20Gbps النوع-C® header (supports Quick Charge 4+ up to 60W / USB PD)
◦ 1x USB 10Gbps النوع-C® header
◦ 2x USB 5Gbps headers (support 4 additional USB 5Gbps النوع-A ports)
◦ 2x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Networking & الاتصال: Marvell® AQtion 10Gb Ethernet, Intel® 2.5Gb Ethernet, Intel® Wi-Fi 7 (802.11be, 320MHz channel bandwidth, up to 5.8Gbps), Bluetooth 5.4
• الشاشة Outputs:
◦ 1x HDMI 2.1 (supports up to 8K @ 60Hz with DSC)
◦ 2x Thunderbolt™ 5 النوع-C® (supports الشاشةPort over USB-C up to 8K @ 60Hz)
• Audio Codec: ROG SupremeFX 7.1 ALC4082 CODEC + ESS® ES9219 QUAD DAC (with Optical S/PDIF output and 2x LED-illuminated audio jacks)
• Power Delivery / Power Connectors: 24+1+2+2 Power Stages (24x 110A VCORE), 1x 24-pin Main Power, 2x 8-pin ProCool II CPU +12V Power, 1x 8-pin PCIe Supplemental Power
• RGB & Fan Headers:
◦ 1x 4-pin CPU Fan header
◦ 1x 4-pin CPU OPT Fan header
◦ 2x 4-pin Water Pump headers
◦ 4x 4-pin Chassis Fan headers
◦ 1x 6-pin ARGB Gen 2 header (split to 2x ARGB Gen 2)
◦ 2x 3-pin Addressable Gen 2 RGB headers (ARGB 5V)
• Special Features: Integrated Full-اللون 5″ LCD الشاشة, PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, 3D Vapor Chamber M.2 Heatsink, Clear CMOS Button, BIOS FlashBack™ Button
